🔧 Soul - Front Door Lock Actuator Replacement

On your Soul, the “door lock actuator” is usually built into the door latch/lock assembly inside the door (the part the door “clicks” into when it closes). Replacing it typically means removing the interior door panel, peeling back the moisture barrier, and swapping the latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative (-) battery cable before unplugging door wiring connectors.
• ⚠️ Keep the window fully up during the job to avoid glass movement.
• ⚠️ Use trim tools (plastic pry tools) to avoid breaking clips and scratching the panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic’s gloves
• 10mm wrench
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• Trim removal tool (plastic)
• Pick tool (small hook) (specialty)
• Torque wrench (in-lb or low Nm range) (specialty)
• Painter’s tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly (LH driver or RH passenger) - Qty: 1
• Door panel trim clips (optional, replace any that break) - Qty: 5-10
• Butyl tape (for resealing moisture barrier, optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the front door fully.
• Use painter’s tape to protect the painted door edge and trim.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the exact front door and part style

• Tell me which front door: driver (left) or passenger (right).
• Also confirm if you bought a complete latch/actuator assembly (most common) or a separate actuator motor.
• This changes what gets unbolted.

Step 2: Remove the interior door handle bezel and switch trim

• Use a trim removal tool (plastic) to gently pry up the window/lock switch panel.
• Unplug the electrical connector(s) by pressing the tab and pulling straight out.
• Use a small flat-blade screwdriver to pop off the small screw covers near the interior handle (if equipped), then remove screws using a Phillips #2 screwdriver.

Step 3: Remove the door panel

• Work around the bottom and sides: use the trim removal tool (plastic) to pop the panel clips loose.
• Lift the whole panel straight upward to unhook it from the window ledge.
• Disconnect any remaining connectors and the interior handle cable(s). Use a pick tool (small hook) to help rotate cable retainers if they’re tight (a pick is a small hooked tool used to pull clips/cables safely).

Step 4: Peel back the moisture barrier

• Carefully peel the plastic foam barrier back enough to access the latch area.
• Go slowly so the sticky butyl doesn’t tear; use a trim removal tool (plastic) to help separate it.

Step 5: Disconnect the latch/actuator electrical connector

• Locate the connector at the latch/actuator and unplug it by pressing the locking tab.

Step 6: Disconnect the latch rods/cables

• At the latch, disconnect the exterior handle linkage and interior handle cable/rod.
• Use a pick tool (small hook) or small flat-blade screwdriver to flip the retaining clip, then lift the rod out.
• Take a photo before removal.

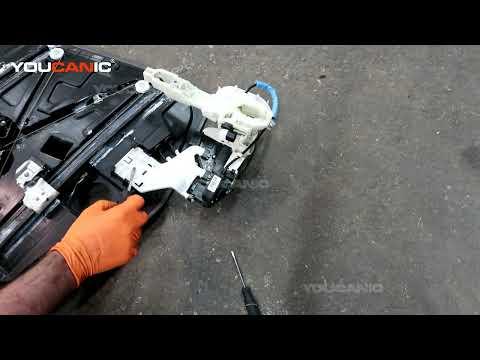

Step 7: Unbolt and remove the latch/actuator assembly

• At the door edge (where the latch meets the body), remove the latch mounting fasteners using a 10mm socket with a 1/4" drive ratchet and 6" extension (as needed).
• Remove any inner fasteners holding the latch bracket (if equipped) using a 10mm socket.
• Wiggle the latch/actuator out through the door opening, guiding cables/rods out carefully.

Step 8: Install the new latch/actuator assembly

• Position the new assembly in the door the same way the old one came out.
• Start all fasteners by hand first, then tighten using a 10mm socket and 1/4" drive ratchet.
• Torque: I’ll provide the correct OEM torque specs after you answer Step 1 (driver/passenger + assembly type), so we don’t risk over/under-tightening.

Step 9: Reconnect rods/cables and electrical connector

• Reconnect each rod/cable and fully lock each retaining clip by hand.
• Plug the latch/actuator connector back in until it clicks.

Step 10: Re-seal moisture barrier and reinstall the door panel

• Press the moisture barrier back into the butyl seal. Add butyl tape if it won’t stick.
• Reconnect door panel wiring and handle cable(s).
• Hang the door panel on the top ledge, then press clips in around the edges with your hands.
• Reinstall screws using a Phillips #2 screwdriver, then snap covers back on.
• Reinstall the switch panel: plug in connectors, then press it into place.

---

✅ After Repair

• Reconnect the battery negative (-) cable using a 10mm wrench.
• Test before fully closing the door: lock/unlock with the switch and key fob, and confirm the interior and exterior handles open the door normally.
• Close the door and confirm it latches smoothly and the lock knob/button moves correctly.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
