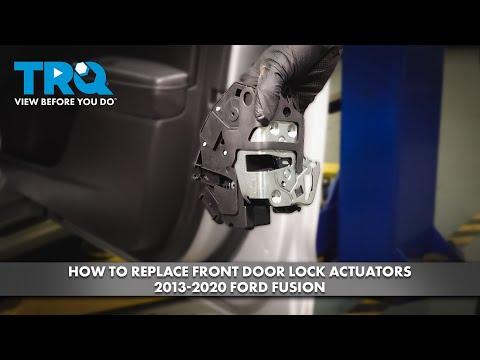

🔧 Fusion - Front Door Lock Actuator Replacement

On your Fusion, the “door lock actuator” is typically part of the front door latch/lock actuator assembly inside the door. Replacing it means removing the interior door panel, disconnecting the handle/lock linkages, unbolting the latch at the door edge, and swapping in the new latch/actuator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before working in the door (wiring + side airbag area).
• ⚠️ Keep the key away from the car and do not turn the ignition on while connectors are unplugged (helps prevent airbag/warning light issues).
• ⚠️ Support the door panel as you lift it off—don’t let it hang by the wiring.
• ⚠️ Use eye protection when popping clips; they can release suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Door panel clip pliers
• Pick tool
• Needle-nose pliers
• Ratchet
• 1/4" drive extension set
• 7mm socket
• 8mm socket
• Torx T20 bit
• Torx T27 bit
• Torx T30 bit
• Small flat screwdriver
• Painters tape
• Torque wrench (inch‑lb)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly (Driver or Passenger side) - Qty: 1
• Door panel retaining clips - Qty: 4-10 (handy if any break)
• Butyl adhesive strip (for vapor barrier reseal) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the car off.
• Roll the window fully up (gives you more room and protects the glass).
• Open the front door you’re repairing and leave it open.
• Disconnect 12V power: use a 10mm wrench at the 12V battery negative terminal and isolate the cable so it can’t spring back. The 12V battery is in the trunk area on most Fusions.
• Wait at least 1 minute before unplugging door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior trim covers

• Use a plastic trim removal tool set to gently pry off the small trim cap(s) hiding screws (typically near the pull handle and/or door release area).
• Trim tool = plastic pry tool that won’t scratch.

Step 2: Remove door panel screws

• Remove the exposed screws using a 7mm socket and/or 8mm socket (some locations may use Torx T20 bit).
• Place screws in a tray so they don’t disappear.

Step 3: Release the door panel clips

• Starting at the bottom edge, use door panel clip pliers or a plastic trim removal tool set to pop the panel clips free.
• Work your way around both sides until the panel feels loose.
• Steady pressure beats hard yanks.

Step 4: Lift the door panel up and unplug wiring

• Lift the panel straight upward to unhook it from the window ledge.
• Support the panel with your knee or a box.
• Unplug connectors using a pick tool or small flat screwdriver to release the locking tabs (window switch, courtesy light, etc.).

Step 5: Disconnect the inside door handle cable

• At the interior handle, use a pick tool to open the cable retaining clip.
• Rotate the cable end out of the handle and free the cable housing.

Step 6: Peel back the vapor barrier

• Carefully peel back the plastic water shield using a plastic trim removal tool set.
• Vapor barrier = plastic sheet that keeps water off electronics.
• Use painters tape to hold it out of the way without tearing it.

Step 7: Unplug the latch/actuator electrical connector

• Locate the connector going to the door latch area (rear edge of the door).
• Press the tab and unplug it; use a pick tool if the tab is stubborn.

Step 8: Disconnect latch linkages/cables

• Disconnect the exterior handle cable/linkage from the latch using needle-nose pliers and a pick tool.
• If equipped, disconnect any lock rod/linkage by opening the plastic retainer and lifting the rod out.
• Take a photo before removing linkages.

Step 9: Remove the latch from the door edge

• At the door’s rear edge, remove the latch mounting screws using a Torx T30 bit with a ratchet and 1/4" drive extension set.
• Remove the latch assembly by guiding it out through the access opening.

Step 10: Install the new latch/lock actuator assembly

• Guide the new latch into position inside the door.
• Start all latch screws by hand, then tighten using a Torx T30 bit.
• Torque to 71 in-lb (8 Nm) using a torque wrench (inch‑lb).

Step 11: Reconnect linkages/cables and the electrical connector

• Reconnect the exterior handle cable/linkage using needle-nose pliers.
• Snap any rod retainers fully closed (half-closed retainers will pop off later).
• Reconnect the latch electrical connector until it clicks.

Step 12: Reseal the vapor barrier

• Press the vapor barrier back into place firmly by hand.
• If the adhesive is no longer sticky, apply butyl adhesive strip to reseal it.

Step 13: Reinstall the door panel

• Reconnect all door panel electrical connectors.
• Hook the panel over the top lip by the window and push downward to seat it.
• Press around the perimeter to engage the clips.
• Reinstall screws using a 7mm socket / 8mm socket / Torx T20 bit (whichever you removed).
• Reinstall trim caps using a plastic trim removal tool set.

Step 14: Reconnect 12V battery power

• Reconnect the negative terminal and tighten using a 10mm wrench.

---

✅ After Repair

• Test the lock using the key fob and the interior lock switch.
• Test both inside and outside door handles to confirm the door opens smoothly.
• Confirm the door locks/unlocks without unusual buzzing or clicking.
• Verify window and mirror controls work on that door.
• If a door panel clip didn’t seat, press the panel firmly at that location.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
