🔧 Escalade - Front Door Lock Actuator Replacement

On your Escalade, the “door lock actuator” is built into the front door latch/lock actuator assembly inside the door. Replacement means removing the interior door panel, disconnecting the latch rods/cables, unbolting the latch at the rear edge of the door, and swapping the assembly.

Quick question (optional): Is it the driver or front passenger door? (Steps are the same, but the rod/cable routing can look slightly different.)

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before working in the door: many Escalades have a side-impact airbag in the door panel.
• ⚠️ Keep the window fully UP before starting to avoid glass damage.
• ⚠️ Don’t pull on wiring; release electrical connectors by their locks.
• ⚠️ Use plastic trim tools to avoid cracking trim and scratching paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• Ratchet (3/8")
• Extension (3"–6")
• Torx T30 bit
• Small flat-blade screwdriver
• Trim removal tool set (plastic)
• Needle-nose pliers
• Pick tool
• Torque wrench (inch-pound) (specialty)
• Flashlight
• Painter’s tape
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door trim panel retainers/clips - Qty: 1 set
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and open the front door fully.
• Raise the window fully and leave the door open.
• Disconnect the battery: use a 10mm socket to remove the negative terminal, then wait 2 minutes before touching door wiring. This reduces airbag risk.
• Apply painter’s tape around the door handle/latch edge to protect paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the window/lock switch trim

• Use a trim removal tool set (plastic) to gently pry up the switch panel.
• Disconnect the electrical connectors using a pick tool to lift the lock tabs. (A lock tab is the small safety clip that prevents accidental unplugging.)

Step 2: Remove the interior door pull and fasteners

• Use a small flat-blade screwdriver to pop off any screw covers in the pull handle and along the panel edge (if equipped).
• Remove the door panel screws using a 7mm socket and ratchet.

Step 3: Release the door panel clips and lift the panel off

• Start at the bottom corner: use a trim removal tool set (plastic) to pop the panel retainers free.
• Once loose, lift the panel straight upward to unhook it from the top ledge by the window.
• Disconnect any remaining electrical connectors using a pick tool as needed.

Step 4: Disconnect the inside door handle cable

• At the inside handle, locate the cable (it has a sheath and an end “ball”).
• Use a small flat-blade screwdriver to release the cable housing from its bracket, then unhook the cable end from the handle.

Step 5: Peel back the water shield (vapor barrier)

• Use a trim removal tool set (plastic) to carefully peel the water shield back only as much as needed to access the latch area.
• If the butyl adhesive strings or won’t reseal, plan to use butyl tape during reassembly.

Step 6: Unplug the latch electrical connector

• Reach the latch area at the rear of the door and find the latch connector.
• Release the connector lock with a pick tool, then unplug it by hand (do not yank the wires).

Step 7: Disconnect the latch rods/cables

• Locate the rods/cables going to the latch (outside handle rod and lock rod; some setups use cables).
• Use needle-nose pliers to rotate the plastic retainers open, then lift the rod out of the retainer.
• Take a photo first for reassembly.

Step 8: Remove the latch from the door edge

• On the rear edge of the door (by the striker), remove the latch screws using a Torx T30 bit, ratchet, and extension.
• Support the latch with your free hand so it doesn’t drop inside the door.

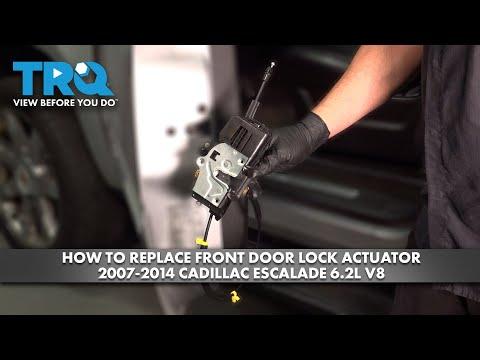

Step 9: Remove and replace the latch/actuator assembly

• Maneuver the latch/actuator assembly out through the main access opening.
• Transfer any brackets/foam pieces to the new assembly (if equipped).
• Install the new latch/actuator assembly into position and start the screws by hand to avoid cross-threading.
• Tighten latch screws with a torque wrench: Torque to 9 Nm (80 in-lb).

Step 10: Reconnect rods/cables and the electrical connector

• Reconnect each rod into its hole, then close the plastic retainer over the rod using needle-nose pliers (gentle pressure).
• Plug the latch connector back in until it clicks.

Step 11: Re-seal the water shield

• Press the water shield firmly back into the butyl adhesive.
• If needed, apply butyl tape and press the shield fully sealed all the way around. A good seal prevents water leaks.

Step 12: Reinstall the door panel

• Reconnect all electrical connectors by hand.
• Hang the door panel on the top lip first, then press the clips in around the perimeter using your hands.
• Reinstall the screws using a 7mm socket and ratchet; snug them (do not over-tighten into plastic).
• Reinstall the switch panel: reconnect connectors, then press it back into place.

Step 13: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Test the lock with the key fob, interior lock switch, and by locking/unlocking with the door open.
• Verify the door opens from inside and outside, and the handle returns normally.
• Start the vehicle and confirm no warning lights appear.
• Check for wind noise or water leaks after the next car wash/rain (water shield seal).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
