🔧 Explorer - Front Door Lock Actuator Replacement

On your Explorer, the “door lock actuator” is typically built into the door latch assembly. Replacement means removing the interior door panel, peeling back the water shield, disconnecting the handle/link rods, then swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

Assumption: Front latch and actuator are one combined assembly (most common).

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up to avoid glass damage.
• ⚠️ Turn ignition OFF, remove key/fob from the vehicle, and keep it 10+ feet away.
• ⚠️ Disconnect the negative battery cable to prevent accidental airbag/short issues while unplugging door wiring.
• ⚠️ Use eye protection—door metal edges are sharp and debris can fall when the panel comes off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Small flathead screwdriver
• Pick tool set
• 1/4" drive ratchet
• 3" 1/4" drive extension
• 7mm socket
• 8mm socket
• Torx T27 bit
• Torx T30 bit
• Needle-nose pliers
• Painter’s tape
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retainer clips - Qty: 4-10
• Water shield butyl tape (door vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window glass slightly, then raise it fully (this helps confirm it’s seated) and leave it fully up.
• Disconnect the negative battery cable using an 8mm socket, then wait 2 minutes before unplugging door connectors.
• Apply painter’s tape along the door edge and near the mirror/trim areas to protect paint while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door switch panel

• Use a plastic trim removal tool set (a non-marring pry tool) to lift the window/lock switch panel from the armrest.
• Unplug the electrical connector(s) by pressing the tab with a pick tool set or small flathead screwdriver, then pulling straight out.

Step 2: Remove hidden screws from the interior door panel

• Use a small flathead screwdriver to pop off any small trim caps hiding screws near the pull handle and door release area.
• Remove the door panel screws using a 7mm socket with a 1/4" drive ratchet and 3" 1/4" drive extension.
• Torque on install: Torque to 2-3 Nm (18-27 in-lbs)

Step 3: Release the door panel clips and lift the panel off

• Starting at the lower edge, slide a plastic trim removal tool set between the panel and the metal door and pop the clips loose.
• Once the clips release, lift the whole panel straight up to unhook it from the window channel.
• Unplug any remaining connectors (courtesy light, speaker, etc.) using the pick tool set.
• Tip: Pop clips near corners last.

Step 4: Peel back the water shield (vapor barrier)

• The water shield is the plastic sheet that keeps rainwater off the interior parts.
• Use a plastic trim removal tool set to gently separate the butyl adhesive and peel the shield back only as far as needed.
• If the adhesive won’t stick later, plan to use water shield butyl tape during reassembly.

Step 5: Disconnect the interior handle cable/rods from the latch

• Locate the latch area at the rear of the door cavity (near the door edge).
• If equipped with metal linkage rods: use needle-nose pliers to rotate the retaining clip off the rod, then lift the rod out.
• If equipped with a handle cable: release the cable end by opening the plastic latch on the cable housing using a small flathead screwdriver, then unhook the cable end.

Step 6: Unplug the latch/actuator electrical connector

• Find the electrical connector on the latch/actuator assembly.
• Press the locking tab using a pick tool set, then unplug it.
• Tip: Pull the connector, not the wires.

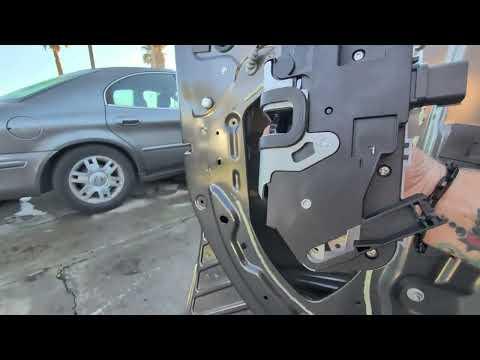

Step 7: Remove the latch/actuator assembly from the door

• On the door edge (rear edge of the door), remove the latch mounting screws using a Torx T27 bit or Torx T30 bit with a 1/4" drive ratchet.
• Support the latch inside the door as the last screw comes out, then maneuver the latch/actuator assembly out through the access opening.
• Torque on install: Torque to 8-10 Nm (71-89 in-lbs)

Step 8: Transfer any brackets/clips (if needed) and install the new assembly

• Match the old and new assemblies under a work light and move over any foam pads, clips, or small brackets (if present) using needle-nose pliers.
• Position the new latch/actuator assembly into the door and start the Torx screws by hand to avoid cross-threading.
• Tighten using a Torx T27 bit or Torx T30 bit: Torque to 8-10 Nm (71-89 in-lbs)

Step 9: Reconnect rods/cable and electrical connector

• Reconnect the electrical connector until it clicks (use your fingers; no tool needed).
• Reconnect the handle rod(s) and snap the retaining clip(s) closed using needle-nose pliers.
• Reconnect any handle cable and re-lock the cable housing using a small flathead screwdriver.

Step 10: Refit the water shield and reinstall the door panel

• Press the water shield back into place. If needed, apply water shield butyl tape and press firmly by hand.
• Reconnect door electrical connectors (switches, speaker, courtesy light) by hand.
• Hang the top of the door panel on the window channel, then press the clips in around the perimeter using your palm.
• Reinstall screws using a 7mm socket: Torque to 2-3 Nm (18-27 in-lbs)
• Snap trim caps back on using a plastic trim removal tool set.

Step 11: Reconnect the battery

• Reconnect the negative battery cable using an 8mm socket.
• Torque on install: Torque to 5-6 Nm (44-53 in-lbs)

---

✅ After Repair

• Test with the door open: lock/unlock using the key fob and the interior switch.
• Test with the door closed: confirm the door locks/unlocks and opens from inside and outside.
• Confirm the inside handle returns smoothly and the lock knob (if equipped) moves normally.
• If the window auto-up/down acts strange after battery disconnect, re-learn it by running the window fully down, then fully up using the switch.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $280-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
