🔧 Expedition - Front Door Lock Actuator Replacement

On your Expedition, the “lock actuator” is typically built into the door latch assembly. Replacing it means removing the interior door panel, unplugging the latch wiring, and swapping the latch/actuator unit inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: front door latch and actuator are one assembly (most common).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce risk of shorts and accidental airbag/pretensioner warnings.
• ⚠️ Wear gloves—there are sharp edges inside the door shell.
• ⚠️ Support the door panel as you lift it off; don’t hang it by the wiring.
• ⚠️ Keep the vapor barrier (plastic sheet) intact and reseal it—this prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" ratchet
• Torx T27 driver
• Torx T30 driver
• 7mm socket
• 8mm socket
• Trim removal tool set
• Small flat-blade screwdriver
• Pick tool
• Needle-nose pliers
• Painter’s tape
• Work light
• Torque wrench (in-lb)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retaining clips - Qty: 4-10 (buy extra in case some break)
• Butyl tape for vapor barrier - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key fob away from the vehicle.
• Lower the window about halfway (it gives you room to work inside the door).
• Use a 10mm socket to disconnect the negative battery cable, then wait 2 minutes.
• Put painter’s tape along the door edge to protect paint while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and trim covers

• Use a trim removal tool set (a plastic pry tool that pops panels loose without scratching) to lift the window/lock switch panel.
• Unplug the switch connectors by pressing the locking tabs (use a pick tool if needed).
• Use a small flat-blade screwdriver to remove any small screw covers near the door pull/handle area.

Step 2: Remove the interior door panel fasteners

• Remove the screws in the door pull/armrest pocket using a 7mm socket or 8mm socket (varies by door trim).
• Remove any screw behind/near the inside handle trim using a Torx T30 driver (if equipped).
• Tip: Put screws in a cup so they don’t disappear.

Step 3: Pop the door panel clips and lift the panel off

• Starting at the bottom edge, use the trim removal tool set to pop the panel clips loose.
• Lift the whole panel straight up and off the window channel (don’t pull straight out at the top).
• Unplug any remaining connectors (courtesy light, speaker, etc.).
• If there’s an inside-handle cable, unclip it using needle-nose pliers and your fingers.

Step 4: Peel back the vapor barrier (water shield)

• Use your hands to slowly peel the plastic vapor barrier back.
• If the sticky butyl tears or won’t reseal, plan to use butyl tape for vapor barrier during reassembly.

Step 5: Disconnect the latch/actuator wiring connector

• Locate the latch connector near the rear of the door (by the door edge).
• Press the tab and unplug it; use a pick tool gently if it’s stubborn.

Step 6: Disconnect the inside handle cable and lock linkages

• At the latch, unclip the inside handle cable (it’s usually a cable end that rotates out of a plastic holder).
• If your door uses metal rods, use needle-nose pliers to rotate the plastic retainers open, then lift the rod out.
• Tip: Take a quick photo before unhooking anything.

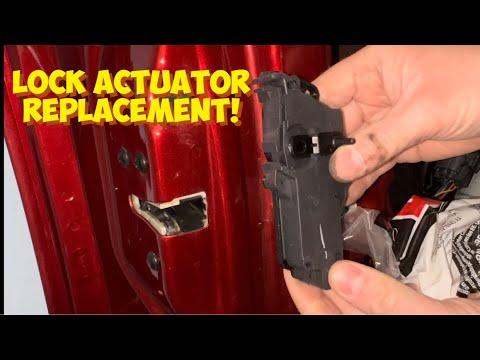

Step 7: Remove the latch/actuator assembly from the door

• On the door edge (where it latches to the body), remove the three latch screws using a Torx T27 driver.
• Torque (install): 71 in-lbs (8 Nm)
• Carefully work the latch assembly out through the access opening in the door.
• Disconnect any remaining linkage to the outside door handle as needed (often accessed through a service hole). Use a work light to see clearly.

Step 8: Install the new latch/actuator assembly

• Position the new latch/actuator assembly into the door the same way the old one came out.
• Reconnect the outside handle linkage and the inside handle cable/rods (use needle-nose pliers if required).
• Plug in the latch electrical connector until it clicks.
• Reinstall the three latch screws using a Torx T27 driver and tighten with a torque wrench (in-lb): Torque to 71 in-lbs (8 Nm)

Step 9: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add butyl tape for vapor barrier anywhere it doesn’t seal.
• Reconnect all door panel electrical connectors.
• Hang the door panel on the top lip first, then press clips in around the edges with your palms.
• Reinstall screws using a 7mm socket, 8mm socket, and/or Torx T30 driver as removed. Torque: 18-27 in-lbs (2-3 Nm)
• Reinstall the switch panel and snap trim covers back in using the trim removal tool set.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Torque: 44 in-lbs (5 Nm)

---

✅ After Repair

• Test the lock with the key fob and the interior switch (lock/unlock several times).
• Test inside handle and outside handle operation before fully closing the door the first time.
• Confirm the door locks/unlocks and latches smoothly, and the door-ajar light behaves normally.
• If water leaks later, reseal the vapor barrier with butyl tape for vapor barrier.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹3,500-₹10,000 (parts only)

You Save: ₹4,500-₹8,000 by doing it yourself!

Local labor rates vary; this repair is typically ~1.5-3.0 hours of shop time.

---
