🔧 Q3 - Front Door Lock Actuator Replacement

On your Q3, the “door lock actuator” is typically built into the door latch assembly. Replacement means removing the inner door trim, disconnecting the latch wiring and handle cable, then swapping the latch/actuator unit.

Assumption: Most 2016 Q3 front doors use a combined latch + actuator unit (replaced as one piece).

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ The door contains a side airbag; disconnect the battery before unplugging door wiring connectors.
• ⚠️ Keep the ignition OFF while any airbag/door module connectors are unplugged to avoid warning lights.
• ⚠️ Support the window glass if you loosen the carrier/regulator area; glass can drop suddenly.
• ⚠️ Work slowly with trim tools to avoid breaking clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Battery terminal wrench 10mm
• Trim removal tool set
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• Ratchet 1/4"
• Socket 10mm
• Pick tool
• Needle-nose pliers
• Masking tape
• Magnetic parts tray
• Flashlight
• Torque wrench 2–25 Nm

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel clips - Qty: 6-10
• Butyl door vapor barrier sealant - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and open the affected front door fully.
• Lower the window about halfway (if possible) so you can access fasteners/hand-carry the glass if needed.
• Disconnect the negative battery cable using a 10mm wrench and wait 10 minutes.
• Put masking tape around the interior handle/trim edges to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a trim removal tool set to carefully pry off the small trim covers near the pull handle and/or inside handle area (covers hide screws).
• Remove the door panel screws using a Torx T20 screwdriver and Torx T25 screwdriver (locations vary: typically in the pull handle and along the bottom edge).
• Starting at the lower corner, pop the panel clips free using the trim removal tool set. Work around the perimeter.
• Lift the panel straight up to unhook it from the window ledge.

Step 2: Disconnect wiring and the inside handle cable

• Unplug the window switch/door module connectors using a pick tool to release the locking tabs (a locking tab is a small catch that must be lifted before the plug comes out).
• Disconnect the interior handle cable (Bowden cable). Use a pick tool to flip the cable end out of its holder, then lift the cable housing out. Take a photo first.
• Set the door panel aside on a soft surface.

Step 3: Peel back the vapor barrier

• Carefully peel back the foam/plastic vapor barrier using a trim removal tool set.
• Try not to tear it; the sticky seal (butyl) can be reused if it stays clean.
• If the butyl is messy or won’t reseal, plan to use butyl door vapor barrier sealant during reassembly.

Step 4: Access and disconnect the door latch wiring

• Locate the latch connector near the rear edge of the door (latch area). Use a flashlight.
• Release the connector lock with a pick tool and unplug it.
• Unclip the harness retainers using needle-nose pliers if needed (pull straight out to avoid breaking them).

Step 5: Loosen the exterior handle carrier (common Audi requirement)

• At the rear edge of the door (near the latch), remove the small rubber plug using a trim removal tool set.
• Inside the hole, loosen the handle carrier screw using a Torx T20 screwdriver (do not fully remove it; it’s usually a captive screw).
• From the outside, slide the small rear handle cap/cover piece rearward and remove it.
• This gives the latch cable/lever enough slack to remove the latch assembly.

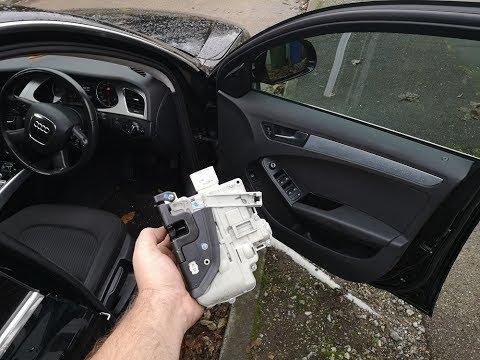

Step 6: Remove the door latch/actuator assembly

• On the door edge, remove the latch mounting screws using a Torx T30 screwdriver (typically 3 screws).
• Torque note (install): Torque to 8 Nm (71 in-lbs) unless your replacement instructions specify otherwise.
• Inside the door, maneuver the latch out through the access opening. Use a flashlight and go slowly to avoid bending linkage rods.
• Detach any remaining linkage/handle cable from the latch using a pick tool.

Step 7: Install the new latch/actuator

• Transfer any clips/brackets from the old unit to the new one (use needle-nose pliers).
• Position the new latch into place and start the door-edge screws by hand.
• Tighten latch screws evenly using a Torx T30 screwdriver and torque wrench 2–25 Nm: Torque to 8 Nm (71 in-lbs).
• Reconnect the latch electrical connector until it clicks.

Step 8: Re-secure the exterior handle carrier

• Reinstall the rear handle cap/cover and slide it into place.
• Tighten the handle carrier screw using a Torx T20 screwdriver: Torque to 4 Nm (35 in-lbs).
• Reinstall the rubber access plug.

Step 9: Reinstall the vapor barrier

• Press the vapor barrier back into the butyl seal all the way around.
• If needed, add butyl door vapor barrier sealant to ensure a watertight seal. Water leaks start here.

Step 10: Reinstall the door panel

• Reconnect all door panel wiring connectors (they should click/lock).
• Reconnect the interior handle cable (seat the cable housing, then snap the cable end into the lever).
• Hang the panel on the top lip by the window first, then press clips in around the perimeter using your hands.
• Reinstall screws using a Torx T20 screwdriver/Torx T25 screwdriver: Torque to 2 Nm (18 in-lbs) (snug, do not over-tighten).
• Reinstall any trim covers.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench: Torque to 6 Nm (53 in-lbs).

---

✅ After Repair

• Test the lock/unlock with the key fob and the interior switch before fully closing the door.
• Open/close the door from inside and outside to confirm the handle feel is normal and the door latches securely.
• Test power windows and mirror controls.
• If an airbag or door warning light appears, it may require a scan tool to clear after repairing the connection.
• Listen for water leaks/wind noise on your next drive; re-press the vapor barrier if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
