🔧 Focus - Front Door Lock Actuator Replacement

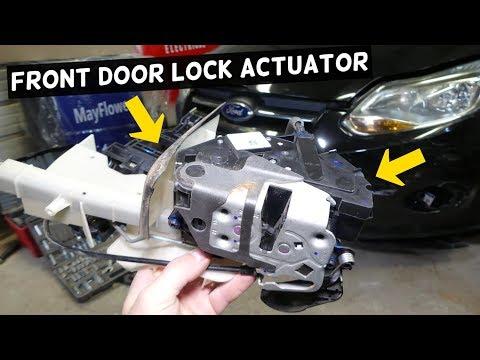

On your Focus, the “door lock actuator” is built into the door latch assembly. Replacing it means removing the interior door panel, disconnecting the latch wiring, and swapping the latch/actuator unit so the door locks/unlocks reliably again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable before working in the door (side airbag wiring runs through the door).
• ⚠️ Wait at least 10 minutes after disconnecting the battery before unplugging connectors in the door.
• ⚠️ Support the door panel as you lift it off; do not yank wiring.
• ⚠️ Keep keys out of the car while working so the locks don’t cycle unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• 7mm socket
• Torx T20 screwdriver
• Torx T30 bit socket
• Trim clip removal tool
• Small flathead screwdriver
• Needle-nose pliers
• Painter’s tape
• Flashlight
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 1 set
• Butyl seal tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, turn ignition off, and lower the window halfway (gives your hands more space).
• 🧰 Use a 10mm socket to disconnect the negative battery cable, then wait 10 minutes.
• 🧰 Put painter’s tape along the painted door edge to help prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door pull/handle trim and fasteners

• Use a small flathead screwdriver to gently pop off the small trim covers hiding screws (work slowly to avoid marring the plastic).
• Use a 7mm socket and 1/4" ratchet to remove the screws in the door pull area.
• If your door has a small bezel at the interior handle, remove its screw(s) using a Torx T20 screwdriver.

Step 2: Remove the window/lock switch panel

• Use the trim clip removal tool (a forked plastic tool that pries clips without breaking them) to lift the switch panel up.
• Unplug the switch electrical connector(s) by pressing the locking tab, using a small flathead screwdriver only if needed.

Step 3: Release the door panel clips and lift the panel off

• Use the trim clip removal tool to pop the panel clips free around the edges (you’ll hear snaps).
• Lift the entire door panel straight up to unhook it from the window channel.
• Support the panel and unplug any remaining connectors (courtesy light, etc.) by hand.
• Detach the interior door handle cable/rod using needle-nose pliers if needed (rotate the plastic retainer, then lift the cable end out).

Step 4: Peel back the vapor barrier

• Carefully peel back the plastic sheet using your fingers.
• The plastic sheet is the vapor barrier (it keeps water from reaching the carpet and electronics). Try not to tear it.
• Stick it to itself to keep it clean.

Step 5: Unplug the door latch/actuator connector

• Find the latch/actuator wiring connector near the rear of the door (latch area).
• Press the tab and unplug it by hand; use a flashlight to see the lock tab clearly.

Step 6: Remove the latch/actuator from the door

• Open the door and locate the three latch screws on the door edge.
• Use a Torx T30 bit socket, 1/4" ratchet, and 6" extension to remove the three screws.
• Inside the door, disconnect the exterior handle cable/rod from the latch (use needle-nose pliers if it’s tight).
• Maneuver the latch/actuator assembly out through the access opening.

Step 7: Install the new latch/actuator

• Transfer any clips/brackets from the old unit to the new one if needed.
• Place the new latch/actuator into position and reconnect the exterior handle cable/rod.
• Install the three latch screws using a Torx T30 bit socket, 1/4" ratchet, and 6" extension.
• Torque to 8 Nm (71 in-lbs) (assumption: common Focus latch screw spec; if a different spec is printed in your service info, follow that).
• Reconnect the electrical connector until it clicks.

Step 8: Refit the vapor barrier and reinstall the door panel

• Press the vapor barrier back into the butyl adhesive. If it won’t stick, apply butyl seal tape and press firmly by hand.
• Reconnect the interior door handle cable/rod.
• Plug in all electrical connectors (switch panel, courtesy light, etc.).
• Hook the door panel on the top lip first, then press around the edges to snap all clips in.
• Reinstall all screws using a 7mm socket and Torx T20 screwdriver, then snap the trim covers back on.
• Reinstall the window/lock switch panel by pressing it down until it clips in.

Step 9: Reconnect the battery

• Use a 10mm socket to reconnect the negative battery cable.
• Tighten it snug (do not overtighten and strip the clamp).

---

✅ After Repair

• 🧪 With the door open, test lock/unlock using the key fob and the interior lock switch.
• 🧪 Close the door and confirm it latches smoothly and unlocks every time.
• 🧪 Check the window operation and confirm the switch panel works.
• 🧪 Verify the vapor barrier is sealed all the way around (helps prevent water leaks and wind noise).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
