🔧 Camry - Front Door Lock Actuator Replacement

The front door lock actuator is the motorized unit that locks/unlocks the door. On your Camry, it’s built into the door latch assembly at the rear edge of the door, so the usual fix is replacing the entire latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time DIY)

Assumption: Procedure is the same idea for left or right front door; only the part (LH/RH) changes.

---

⚠️ Safety & Precautions

• ⚠️ Turn the car OFF and keep the key fob at least 15 ft away so the locks can’t cycle while your hands are inside.
• ⚠️ Disconnect the 12V battery negative terminal to prevent accidental shorting and surprise lock/window movement.
• ⚠️ Work with the window fully up to avoid glass shifting.
• ⚠️ Be gentle with the vapor barrier (plastic sheet). It prevents water leaks and wind noise.
• ⚠️ Wear gloves—door inner metal edges can be sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Panel clip pliers
• Phillips #2 screwdriver
• Flat-blade screwdriver (small)
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torx T30 bit
• Pick tool (small)
• Needle-nose pliers
• Torque wrench (inch-pound or low-range Nm)
• Painter’s tape
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly (LH or RH) - Qty: 1
• Door panel clips - Qty: 5-10 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and make sure the car is OFF.
• Open the front door you’re working on and lower the seatback a bit for space.
• Use painter’s tape on painted edges near the door handle area to prevent scratches.
• Disconnect the 12V battery negative terminal using a 10mm socket. Tuck the cable so it can’t spring back.
• Make sure the window is fully up before you start removing parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner door handle trim

• Use a trim removal tool set (plastic) to pry off the small trim cover around/behind the inside door handle.
• Remove any exposed screw(s) using a Phillips #2 screwdriver.

Step 2: Remove the switch panel and disconnect wiring

• Use a trim removal tool set (plastic) to lift the window/lock switch panel.
• Disconnect the electrical connectors by pressing the lock tab using a pick tool (small) if needed.
• Tip: Wiggle connectors—don’t pull wires.

Step 3: Remove door panel screws

• Check the armrest pull pocket and lower edge of the panel for screws.
• Remove screws using a Phillips #2 screwdriver and/or 10mm socket with a 1/4" drive ratchet.
• Place screws in a magnetic parts tray.

Step 4: Pop the door panel clips and lift the panel off

• Use panel clip pliers or a trim removal tool set (plastic) to pop the panel clips around the perimeter.
• Lift the panel straight up to unhook it from the top window ledge.
• Disconnect any remaining connector(s) using a pick tool (small) as needed.

Step 5: Detach the inside handle cable/rod

• Support the panel close to the door so the cable/rod isn’t stretched.
• Release the cable/rod from the inside handle by flipping the plastic retainer using a flat-blade screwdriver (small), then lift the end out.
• Tip: Take a quick photo before disassembly.

Step 6: Peel back the vapor barrier

• Use a trim removal tool set (plastic) to gently peel the vapor barrier back only as far as needed.
• If the adhesive is messy or damaged, plan to reseal using butyl tape.

Step 7: Disconnect the latch/actuator electrical connector

• Find the latch/actuator connector near the rear of the door (by the latch).
• Press the tab and unplug it using a pick tool (small) if the tab is stubborn.

Step 8: Remove the latch screws at the door edge

• On the rear edge of the door, remove the 3 latch screws using a Torx T30 bit with a 1/4" drive ratchet and 6" extension.
• Keep the latch supported from inside the door so it doesn’t drop.
• Torque to 8 N·m (71 in-lbs) during reassembly.

Step 9: Disconnect the lock/handle linkages from the latch

• Inside the door, locate the metal rods/cables going to the latch (outside handle and lock).
• Flip the colored plastic retaining clips open using a pick tool (small).
• Pull the rod end out of the latch lever using needle-nose pliers if needed.
• Tip: Do not bend the rods.

Step 10: Remove the latch/actuator assembly

• Maneuver the latch/actuator assembly out through the service opening.
• Use a work light to help you see the path and avoid snagging harnesses.

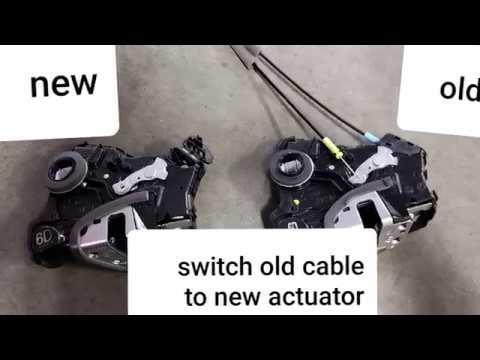

Step 11: Install the new latch/actuator assembly

• Slide the new assembly into position the same way the old one came out.
• Reconnect all rods/cables and snap the retaining clips fully closed using a pick tool (small).
• Plug in the electrical connector until it clicks.

Step 12: Bolt the latch back in

• Install the 3 latch screws with the Torx T30 bit.
• Torque to 8 N·m (71 in-lbs).

Step 13: Reseal the vapor barrier

• Press the vapor barrier back into place firmly.
• Add butyl tape where the seal is weak or torn.

Step 14: Reinstall the door panel

• Reconnect the inside handle cable/rod using a flat-blade screwdriver (small) to seat the retainer.
• Reconnect all electrical connectors at the panel (switch panel, courtesy light, etc.).
• Hook the top of the panel on the window ledge and press the clips in around the edges using your hands.
• Reinstall screws using a Phillips #2 screwdriver and/or 10mm socket with a 1/4" drive ratchet (snug, not over-tight).
• Snap the trim pieces back on using a trim removal tool set (plastic) to align them.

Step 15: Reconnect the 12V battery

• Reconnect the negative terminal using a 10mm socket.
• Tighten securely (do not strip).

---

✅ After Repair

• With the door open, test lock/unlock using the key fob and the interior switch.
• Test the outside handle and inside handle to confirm the door opens normally.
• Close the door and confirm it locks/unlocks and the knob moves smoothly.
• Check that the window switch works and the panel sits flush (no rattles).
• If you hear water/air noise later, recheck the vapor barrier seal.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $230-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
