🔧 Camry - Front Door Lock Actuator Replacement

On your Camry, the “door lock actuator” is typically built into the door latch assembly. Replacing it involves removing the interior door panel, peeling back the moisture barrier, then swapping the latch/actuator unit and reconnecting the cables and wiring.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative terminal before unplugging door wiring to prevent shorts.
• ⚠️ Keep the window fully up and taped in place if you loosen any window guides.
• 🧤 Wear gloves—inner door metal edges are sharp.
• 🔥 If the car was recently driven in heat, door metal can be hot to touch.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Torx T30 bit
• Pick tool
• Needle-nose pliers
• Trim clip removal tool (specialty)
• Torque wrench (in-lb)
• Painters tape
• Flashlight
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 6-10
• Butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Open the affected front door fully and lower the window slightly to access trim, then raise it all the way up.
• Disconnect the battery negative terminal using a 10mm socket, then wait 90 seconds.
• Set a clean towel nearby for screws and clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle trim and switch panel

• Use a trim clip removal tool (specialty) to gently pry up the window switch panel.
• Unplug the switch connectors using a pick tool to lift the small locking tabs.
• Use a pick tool to pop off the small cover behind the interior door handle, then remove the screw with a Phillips #2 screwdriver.
• Work slowly to avoid cracking trim.

Step 2: Remove the door panel fasteners

• Remove the screw(s) in the armrest/pull-handle pocket using a Phillips #2 screwdriver.
• If equipped with a small courtesy light at the bottom of the panel, pry it out with a trim clip removal tool (specialty) and unplug it.

Step 3: Release the door panel clips and lift the panel off

• Starting at the lower edge, slide the trim clip removal tool (specialty) under the panel and pop the clips free one by one.
• Lift the whole door panel straight upward to unhook it from the top window ledge.
• Unplug any remaining connectors (speaker, courtesy, etc.) using a pick tool as needed.

Step 4: Peel back the moisture barrier

• Carefully peel back the plastic sheet using your hands and a pick tool as needed.
• This plastic sheet is the moisture barrier (it keeps water out of the cabin). Try not to tear it.
• If the sticky seal is damaged, plan to replace it with butyl seal tape during reassembly.

Step 5: Disconnect the inside handle cable and lock linkage at the latch

• Locate the door latch area (rear edge of the door) and follow the inside handle cable/rods to it using a flashlight.
• Use a pick tool to flip open the plastic retainers, then lift the cable/rod ends out.
• Use needle-nose pliers only if needed—don’t bend the rods.

Step 6: Unplug the actuator electrical connector

• Press the connector release and unplug it at the latch using a pick tool if it’s stubborn.
• Check for corrosion or damaged pins using a flashlight.

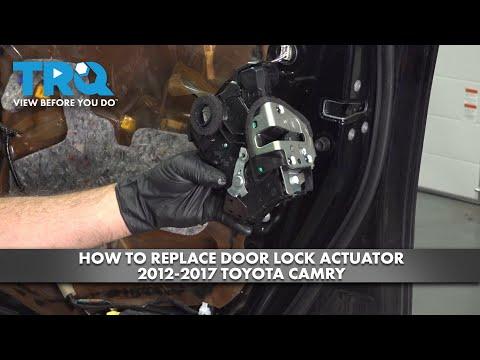

Step 7: Remove the latch/actuator assembly from the door

• At the door’s rear edge, remove the three latch screws using a Torx T30 bit and 1/4" ratchet.
• Support the latch with your free hand so it doesn’t drop inside the door.
• Work the latch/actuator assembly out through the large access opening in the door.
• During reassembly: Torque to 62 in-lb (7 N·m) using a torque wrench (in-lb).

Step 8: Transfer any brackets/cables to the new latch (if applicable)

• Compare the old and new latch/actuator assemblies side-by-side using a flashlight.
• If any cable brackets or small clips must be swapped, move them over using a pick tool and needle-nose pliers.
• Match routing exactly to prevent binding.

Step 9: Install the new latch/actuator and reconnect everything

• Position the new latch/actuator into the door and start the three screws by hand, then tighten with a Torx T30 bit.
• Torque to 62 in-lb (7 N·m) using a torque wrench (in-lb).
• Reconnect the actuator electrical connector by pushing until it clicks.
• Reconnect the inside handle cable/rods and snap the plastic retainers closed using a pick tool.

Step 10: Re-seal the moisture barrier

• Press the moisture barrier back into place by hand.
• If the original adhesive doesn’t stick, apply butyl seal tape and press firmly all the way around.

Step 11: Reinstall the door panel

• Reconnect all electrical connectors (switch panel, speaker, courtesy light) by hand.
• Hang the door panel on the top ledge first, then press the clips in around the perimeter using your palm.
• Reinstall screws with a Phillips #2 screwdriver, then snap trim covers back into place.

Step 12: Reconnect battery and function-check

• Reconnect the battery negative terminal using a 10mm socket.
• Test: lock/unlock with the key fob and the inside switch, then open from inside and outside.
• Verify the window switch and mirror controls work.

---

✅ After Repair

• Cycle the lock 10+ times (lock/unlock) to confirm consistent operation.
• If the auto-up/down window feature acts weird, initialize it: hold the window switch down fully for 2 seconds, then up fully for 2 seconds.
• Listen for rattles on a short drive—loose clips are common. Replace any broken door trim panel clips.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $220-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
