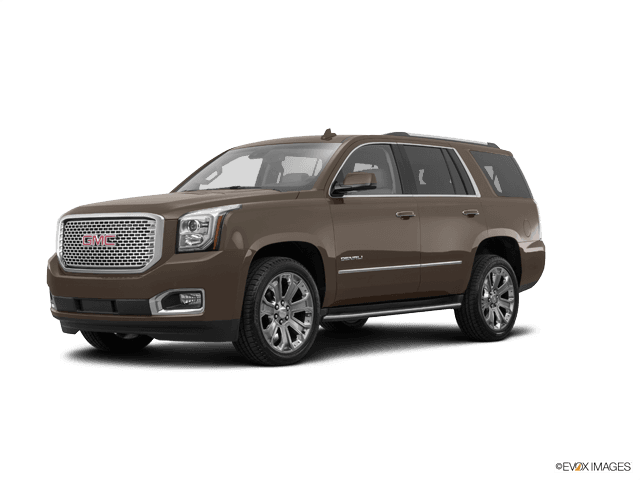

🔧 Yukon - Front Door Lock Actuator Replacement

On your Yukon, the front door lock actuator is typically built into the door latch assembly. Replacing it means removing the interior door panel, peeling back the water shield, unplugging the latch, and swapping the latch/actuator so the power lock works reliably again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before working in the door (side airbag wiring is in the door).
• ⚠️ Keep the key fob at least 10+ feet away so the locks don’t cycle unexpectedly.
• ⚠️ Support the door panel as you lift it off—don’t let it hang by the wiring.
• ⚠️ Use plastic trim tools to avoid breaking clips and scratching trim.
• ⚠️ Keep fingers clear of sharp door metal edges inside the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 screwdriver
• Torx T30 bit
• Pick tool
• Plastic trim removal tool set
• Needle-nose pliers
• Small flat screwdriver
• Painter’s tape
• Torque wrench (inch-pound)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door trim panel retainer clips - Qty: 6-12
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn ignition OFF.
• Lower the window about halfway (gives you a better handhold and access).
• Disconnect the negative battery cable using a 10mm socket. Wait at least 2 minutes before unplugging door connectors. This helps disable the airbag circuit.
• Apply painter’s tape along the painted door edge and around the interior trim edges to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the trim covers and door pull fasteners

• Use a plastic trim removal tool set to pop off the small trim cover(s) hiding screws (usually behind the interior door handle area and in/near the pull handle pocket).
• Remove the exposed screws using a Torx T20 screwdriver.

Step 2: Remove the window/lock switch panel

• Use a plastic trim removal tool set to carefully lift the switch panel up.
• Unplug the electrical connector(s). Use a pick tool to lift the locking tab if needed (a locking tab is a small “catch” that prevents the plug from backing out).

Step 3: Remove the interior door panel

• Starting at the bottom edge, use a plastic trim removal tool set to pop the panel clips free (you’ll feel them “snap” out).
• Lift the entire door panel straight upward to unhook it from the window channel at the top.
• Support the panel and unplug any remaining connectors using a pick tool if the locks are stubborn.

Step 4: Remove the interior handle cable/rod (if equipped)

• At the interior handle, release the cable/rod retainer using a small flat screwdriver.
• Unhook the cable end/rod end using needle-nose pliers if needed.

Step 5: Peel back the water shield (vapor barrier)

• Carefully peel the water shield back using your hands and a plastic trim removal tool set.
• If the butyl (sticky black adhesive) won’t release, use a small flat screwdriver gently and go slow.
• Don’t tear it—this prevents water leaks.

Step 6: Disconnect the latch/actuator electrical connector

• Locate the latch connector near the rear edge of the door (inside the door cavity).
• Release the connector lock with a pick tool and unplug it.

Step 7: Disconnect the latch link rods/cables

• Disconnect the inside handle rod/cable at the latch using a small flat screwdriver (flip the plastic retainer open, then lift the rod out).
• Disconnect the lock rod (if present) the same way. Use needle-nose pliers if your fingers can’t reach.

Step 8: Remove the door latch/actuator from the door

• On the door’s rear edge, remove the three latch screws using a Torx T30 bit with a 1/4" drive ratchet and 3" extension.
• Maneuver the latch assembly out through the access opening. Use a flashlight to watch for snagged rods/wires.

Step 9: Install the new latch/actuator

• Transfer any seals/foam pieces from the old assembly to the new one by hand.
• Position the new latch into the door and start all three screws by hand.
• Tighten the latch screws with a torque wrench (inch-pound): Torque to 89 in-lbs (10 Nm).
• Reconnect the rods/cables. Make sure each plastic retainer is fully snapped closed.
• Reconnect the electrical connector until it clicks.

Step 10: Quick function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• With the door still open, press the power lock/unlock switch and confirm the latch locks/unlocks.
• Test the inside handle and outside handle operation carefully (do not slam the door with the panel off).
• Disconnect the negative battery cable again using a 10mm socket before putting the panel back on.

Step 11: Reinstall the water shield

• Press the water shield back into place by hand.
• If it won’t stick, apply butyl tape (water shield adhesive) and press firmly along the edges.

Step 12: Reinstall the door panel and trim

• Reconnect all electrical connectors and the interior handle cable/rod.
• Hang the door panel on the top window channel, then press the clips in by hand around the edges.
• Reinstall the screws using a Torx T20 screwdriver. Torque to 18 in-lbs (2 Nm).
• Reinstall trim covers using a plastic trim removal tool set.
• Reinstall the switch panel and press it down until it snaps in.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Test: key fob lock/unlock, door switch lock/unlock, interior handle, exterior handle.
• Confirm the door locks smoothly with the door closed and there are no rattles.
• Check for water leaks after the next car wash/rain (water shield must be sealed).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
