🔧 Front Door Lock Actuator - Replacement

On your XC60, the front door lock actuator is built into the latch assembly inside the door. This job means removing the door panel, disconnecting the latch rods and connectors, then swapping the latch/actuator unit and reassembling everything carefully.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before removing the door panel to avoid accidental airbag or module issues.
• The front door contains side airbag wiring. Do not probe yellow connectors.
• Support the door trim panel as you remove it so the wiring does not tear.
• Keep the window glass fully up before starting.
• Work with the door open on level ground and keep the key away from the vehicle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• 7mm socket
• 10mm socket
• Ratchet
• Extension
• Trim panel removal tool
• Small pick tool
• Needle-nose pliers
• Plastic pry tool
• Torque wrench
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door vapor barrier butyl tape - Qty: 1
• Replacement fasteners as needed - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the affected front door fully.
• Lower the window slightly only if needed for access, then return it fully up before disconnecting anything.
• Disconnect the negative battery cable with a 10mm socket and wait at least 10 minutes.
• Keep all screws and clips organized by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel removal tool to pop off the trim covers around the pull handle and lower edge.
• Remove the visible screws with a Torx T20 screwdriver and Torx T25 screwdriver.
• Use the plastic pry tool to release the door panel clips around the edge.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the electrical connectors for the window switches and speaker. Do not pull on the wires.

Step 2: Remove the vapor barrier

• Carefully peel back the door vapor barrier by hand.
• Use a plastic pry tool to lift the butyl seal only where needed.
• Keep the barrier clean so it can be reused or resealed later.

Step 3: Disconnect the latch and actuator connections

• Use a small pick tool to release the cable ends from the interior handle mechanism.
• Disconnect the electrical connector from the latch/actuator assembly.
• Use needle-nose pliers if a rod clip is tight, but do not force it.

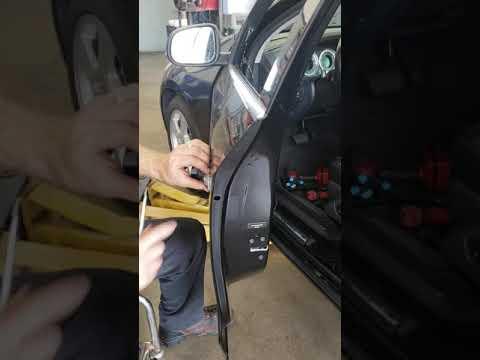

Step 4: Remove the door latch/actuator assembly

• Remove the latch retaining bolts on the door edge with a Torx T30 screwdriver or the correct socket for the fasteners fitted to your door.
• Support the latch while removing the last bolt so it does not drop inside the door.
• Slide the latch/actuator assembly out through the access opening in the door shell.
• Torque on installation: tighten the latch fasteners to Volvo factory specification.

Step 5: Install the new actuator/latch assembly

• Compare the new part to the old one before installing it.
• Slide the new latch/actuator assembly into position through the access opening.
• Reconnect the electrical connector and any rods or cables.
• Install the retaining bolts by hand first, then tighten with the Torx T30 screwdriver or correct socket.
• Torque to Volvo factory specification.

Step 6: Test the latch before reassembly

• Reconnect the battery temporarily if needed and test the door lock with the key fob and interior switch.
• Check that the inside and outside handles open the door correctly.
• Make sure the door locks and unlocks smoothly before reinstalling the panel.

Step 7: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place and reseal any lifted areas with door vapor barrier butyl tape.
• Reconnect all electrical connectors to the door panel.
• Hang the door panel on the upper window ledge first, then press the clips into place with your hands.
• Reinstall the screws with the Torx T20 screwdriver and Torx T25 screwdriver.
• Reinstall all trim covers.
• Torque trim screws to Volvo factory specification.

---

✅ After Repair

• Reconnect the negative battery cable with a 10mm socket.
• Cycle the door lock several times with the key fob, switch, and key blade.
• Open and close the door multiple times to confirm smooth latch operation.
• Check for rattles, loose trim, or warning messages.
• If the window one-touch function was lost, perform the window initialization procedure from the driver switch.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
