🔧 Blazer - Engine Air Filter Replacement

Your Blazer’s engine air filter cleans the air before it goes into the engine. Replacing it on time helps power, fuel economy, and keeps dirt from damaging the engine.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the engine off and let the underhood area cool before working.
• ⚠️ Keep dirt/leaves from falling into the open air box or intake tube.
• ⚠️ Do not start the engine with the air filter removed.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" drive ratchet
• Flat-blade screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park your Blazer on level ground and shift to Park.
• Open the hood and locate the air filter housing (air box) at the front/side of the engine bay with a large intake tube attached.
• Use a flashlight to look at the air box cover fasteners—your Blazer will have either metal clips or small screws (or a mix).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

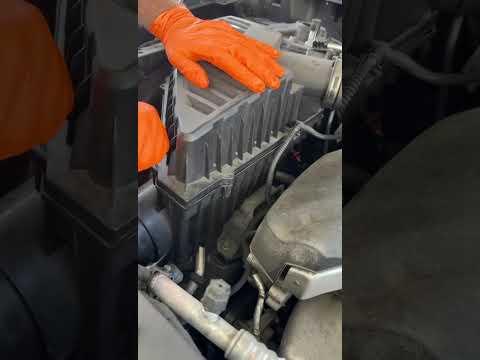

Step 1: Locate the air box

• Use a flashlight to find the rectangular air filter housing connected to the intake tube.
• The air filter sits inside this box.

Step 2: Release the air box cover

• If your cover uses clips: release them by hand, or gently pry with a flat-blade screwdriver.
• If your cover uses screws: loosen them using an 8mm socket with a 1/4" drive ratchet.
• Don’t force it—recheck for a hidden fastener.

Step 3: Open the air box cover

• Lift the cover straight up using your hands (wear nitrile gloves).
• If the intake tube limits movement, lift the cover just enough to slide the filter out—do not yank on the tube.

Step 4: Remove the old filter

• Pull the filter straight out by hand.
• Use a flashlight to look inside the lower air box for leaves/dirt.

Step 5: Clean the air box sealing area

• Use a flashlight and your gloved hand to remove any loose debris you can safely grab.
• Do not let debris fall down the intake opening.

Step 6: Install the new filter

• Place the new filter into the lower air box by hand.
• Make sure it sits flat and fully down in the tray (no corners folded).
• A crooked filter can cause dust leaks.

Step 7: Close and secure the air box cover

• Lower the cover into position by hand, ensuring the cover edge lines up evenly all the way around.
• Re-latch the clips by hand, or tighten screws with an 8mm socket and 1/4" drive ratchet until the cover is fully seated (do not overtighten).

Step 8: Final check

• Use a flashlight to verify the cover is fully closed and all clips/screws are secured.
• Confirm no tools are left in the engine bay.

---

✅ After Repair

• Start the engine and let it idle for 20–30 seconds.
• Listen for any hissing/whistling that could indicate the air box cover isn’t sealed.
• If a check engine light appears, shut off the engine and re-check that the air box cover is fully seated and fasteners are secure.

---

💰 DIY vs Shop Cost

Shop Cost: ₹1,500-₹4,000 (parts + labor)

DIY Cost: ₹700-₹2,500 (parts only)

You Save: ₹800-₹1,500 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
