🔧 Escape - Engine Air Filter Replacement

You'll be replacing the engine air filter in your Escape to make sure the engine breathes clean air and runs efficiently. This is a simple under-hood job with basic tools and no computer work.

Difficulty Level: Beginner | Estimated Time: 0.25–0.5 hours

---

⚠️ Safety & Precautions

• 🛑 Make sure the engine is off and the key is out of the ignition.
• 🧊 Let the engine cool if it has been running; parts under the hood can be hot.
• 📦 Do not start the engine with the air box open or the filter removed.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 8mm socket
• 🧰 1/4" drive ratchet
• 🧰 3" 1/4" drive extension
• 🧰 Flat trim tool or flathead screwdriver (small)
• 🧰 Work gloves
• 🧰 Safety glasses
• 🧰 Shop towel or clean rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 📦 Engine air filter element (panel type, 2.0L EcoBoost) - Qty: 1
• 📦 Mass airflow sensor safe cleaner - Qty: 1 (optional, for light cleaning only)
• 📦 Disposable shop towels - Qty: 1 pack

---

📋 Before You Begin

• 🚗 Park your Escape on level ground, set the parking brake, and shift to Park.
• 🔑 Turn the engine off and remove the key or key fob from the vehicle.
• 🧤 Put on safety glasses and gloves before opening the hood.
• 🪪 Open the hood using the interior hood release and then the safety latch at the front of the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the air filter housing

• Stand in front of your Escape and look toward the right side of the engine bay (passenger side).
• The air filter housing is the large black plastic box with a big hose running from it toward the engine.
• Think "big plastic box that air hose connects to".

Step 2: Clear access around the air box

• If there are any small hoses or wiring clips attached to the top or sides of the air box, gently pry the clips up using the flat trim tool or small flathead screwdriver.
• Move any loose wiring gently out of the way so you can fully open the air box lid.
• Do not pull on wires directly; only on plastic clips.

Step 3: Loosen the air intake hose clamp

• Find the metal band clamp where the large rubber or plastic hose attaches to the air box.
• Use the 8mm socket with the 1/4" drive ratchet to loosen the clamp screw a few turns.
• You do not need to remove the clamp completely—just loosen it enough so the hose can move slightly.
• Only loosen until the hose can wiggle.

Step 4: Remove the air box lid screws

• Locate the screws or bolts around the edge of the air box lid (typically 4–6 fasteners).
• Use the 8mm socket, extension, and ratchet to remove each screw.
• Set the screws aside somewhere safe so they do not fall into the engine bay.
• Torque spec on reassembly: 3–4 Nm (27–35 in-lbs) — this is snug, not tight.

Step 5: Lift and tilt the air box lid

• Gently lift the air box lid straight up; you may need to wiggle it a bit because of locating tabs or the intake hose.
• If the hose is tight, gently twist it by hand while lifting the lid; do not force it.
• Once loose, tilt the lid upward and toward the engine to expose the air filter inside the lower half of the box.
• Only lift as far as wiring and hose slack allow.

Step 6: Remove the old air filter

• Note how the old filter is sitting in the box: which side is up and which edge faces forward.
• Lift the old filter straight up and out by hand.
• Inspect it. If it’s very dirty, dark, or full of debris, replacement is overdue.

Step 7: Clean the air box (optional but recommended)

• Use a shop towel or clean rag to wipe out any loose dust and debris from the bottom of the air box.
• Do not use water or harsh cleaners inside the air box.
• If you lightly clean the area near the sensor mounted in the air intake tube, use mass airflow sensor safe cleaner and follow the can’s directions carefully. Do not touch the sensor element with your fingers.
• Only spray sensor-safe cleaner, nothing else.

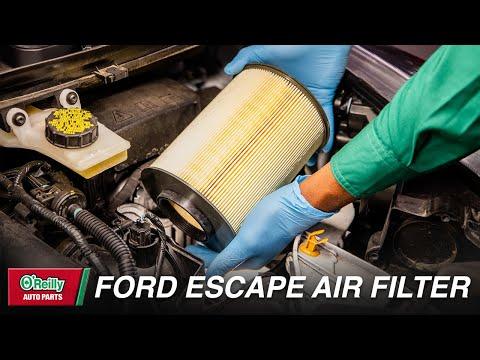

Step 8: Install the new air filter

• Compare the new filter to the old one to make sure size and shape match.
• Place the new filter into the lower half of the air box in the same orientation as the old one.
• Make sure the rubber sealing edge of the filter sits flat all the way around and is fully seated in its groove.
• The filter should sit flat, not crooked.

Step 9: Reinstall the air box lid

• Lower the air box lid back into place, making sure any tabs at the back or sides slide into their slots correctly.
• Keep light downward pressure on the lid so it compresses the filter seal evenly.
• Start all the lid screws by hand to avoid cross-threading (crooked threading).
• Use the 8mm socket, extension, and ratchet to snug each screw.
• Tighten them evenly, going around the lid. Do not overtighten.
• Torque to 3–4 Nm (27–35 in-lbs) — just past finger-tight.

Step 10: Tighten the intake hose clamp

• Make sure the large intake hose is fully seated on the air box neck.
• Use the 8mm socket and ratchet to tighten the hose clamp until it is snug.
• Do not overtighten; you want it firm enough that the hose cannot twist or slide off by hand.
• If the hose still moves, tighten a bit more.

Step 11: Reattach any clips or wiring

• Reinstall any wiring harness clips or small hoses you moved earlier back into their holders on the air box.
• Push clips in firmly until they snap into place.

Step 12: Final under-hood check

• Look around the air box and intake hose to verify nothing is loose, pinched, or left disconnected.
• Make sure no tools or rags are left in the engine bay.
• Close the hood securely.

---

✅ After Repair

• 🔁 Start the engine and let it idle for a minute. Listen for any unusual hissing sounds around the air box or intake hose (which could mean a loose clamp or lid).
• 🚦Blip the throttle lightly from the driver’s seat. Ensure the engine responds smoothly with no stumbling.
• 📊 No scan tool procedures or resets are required for this repair on your Escape.
• 🧾 Make a note of the mileage; engine air filters are typically checked every oil change and replaced every 15,000–30,000 miles depending on conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $70–$120 (parts + labor)

DIY Cost: $20–$40 (parts only)

You Save: $50–$80 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.2–0.3 hours.

---
