🔧 Sierra 1500 - Engine Air Filter Replacement

You’ll be replacing the engine air filter in your Sierra 1500 to ensure the engine gets clean air and keeps its power and fuel economy. This job is mostly opening the air box, swapping the filter, and closing it correctly.

Difficulty Level: Beginner | Estimated Time: 15–30 minutes

---

⚠️ Safety & Precautions

• 🛑 Work with the engine off, key out of the ignition, and allow the engine bay to cool if the truck was just running.
• 🛑 Do not unplug or damage the sensor on the intake tube (mass airflow sensor) unless instructed; it is delicate and expensive.
• 🛑 Keep all tools and loose items away from the engine fan and belts.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 8mm socket
• 🧰 1/4" drive ratchet
• 🧰 1/4" drive extension (3"–6")
• 🧰 Torx T20 screwdriver
• 🧰 Small flathead screwdriver (4mm blade)
• 🧰 Torque wrench (inch-pound, 20–80 in-lbs range)
• 🧰 Work gloves
• 🧰 Safety glasses
• 🧰 Shop vacuum with narrow nozzle

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Engine air filter element (5.3L) - Qty: 1
• 🧱 Air box cover gasket or seal - Qty: 1 (only if damaged)
• 🧱 Mass airflow sensor screws - Qty: 2 (optional replacement if corroded)
• 🧱 Shop towels - Qty: 2–4

---

📋 Before You Begin

• 🧭 Park your Sierra on level ground, shift to PARK, and set the parking brake.
• 🧭 Open the hood and secure it with the hood prop rod if equipped.
• 🧭 Make sure you have the new filter on hand and compare its size and shape with the old one before final installation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

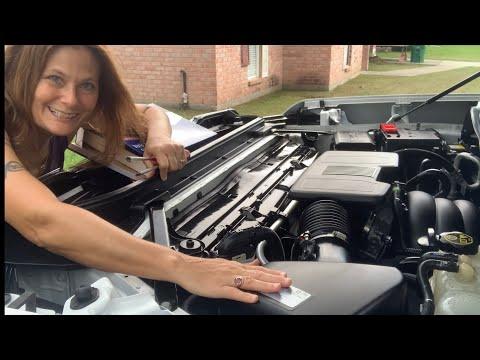

Step 1: Locate the air filter box

• 🔹 Stand in front of the truck and look on the passenger side of the engine bay.
• 🔹 Find the large black plastic box with a plastic tube running from it toward the engine — this is the air filter box and intake tube.
• 🔹 The mass airflow sensor is the small sensor with a plug in the intake tube near the air box.

Step 2: Disconnect the mass airflow sensor electrical connector

• 🔹 Use the small flathead screwdriver to gently lift the red or gray locking tab on the sensor connector, if present.
• 🔹 Press down on the main release tab with your thumb and pull the connector straight off the sensor.
• 🔹 Move the wiring aside so it will not pull tight when you lift the air box cover.

Step 3: Loosen the intake tube clamp at the air box

• 🔹 Use the 8mm socket and 1/4" drive ratchet to loosen the metal clamp where the intake tube joins the air box cover.
• 🔹 Turn the screw counterclockwise several turns until the clamp is loose and the tube can wiggle slightly.
• 🔹 You do not need to remove the clamp or tube completely, only loosen it.

Step 4: Release the air box clips

• 🔹 On the outer edge of the air box cover, locate the metal retaining clips.
• 🔹 Use your fingers or the small flathead screwdriver to gently pry the clips away from the cover and flip them off the edge.
• 🔹 There are usually two to three clips; make sure all are released.

Step 5: Remove the air box cover

• 🔹 Gently pull the intake tube off the air box cover by hand while lifting the cover upward.
• 🔹 The cover has tabs on the side closest to the engine; tilt the cover upward from the fender side and slide it out of those tabs.
• 🔹 Set the cover down in a clean area with the inside facing up so dirt does not get inside.

Step 6: Remove the old air filter

• 🔹 Grab the old filter by the plastic frame and lift it straight out of the bottom half of the air box.
• 🔹 Note which way the filter is oriented (rubber or plastic sealing edge and airflow direction if marked).
• 🔹 Do not knock loose dirt into the opening that leads to the engine.

Step 7: Clean the air box (optional but recommended)

• 🔹 Use the shop vacuum with narrow nozzle to carefully vacuum leaves, sand, and debris from the bottom of the air box.
• 🔹 Keep the nozzle away from the opening leading deeper into the intake so you do not damage anything.
• 🔹 Wipe the sealing surface (where the filter sits) with shop towels so it is clean and smooth.
• Clean surfaces help seal and keep dirt out.

Step 8: Install the new air filter

• 🔹 Place the new filter into the air box with the same orientation as the old one.
• 🔹 Make sure the rubber or foam sealing edge sits flat and even all the way around the air box lip.
• 🔹 The filter should sit fully down in the box, not cocked or twisted.

Step 9: Inspect the air box cover seal and sensor

• 🔹 Check the rubber seal or gasket around the inside of the air box cover for cracks or damage; replace if needed.
• 🔹 Quickly inspect the mass airflow sensor (the part in the tube) for obvious dirt or oil; do not touch the sensing element.
• Only use dedicated MAF cleaner if ever cleaning.

Step 10: Reinstall the air box cover

• 🔹 Slide the tabs on the air box cover (engine side) back into their slots on the lower box.
• 🔹 Lower the cover down evenly onto the new filter, making sure it does not push or fold the filter seal.
• 🔹 At the same time, guide the intake tube back over the outlet of the air box cover by hand.

Step 11: Reattach the air box clips and tighten the clamp

• 🔹 Snap the metal clips back over the edge of the air box cover using your fingers; make sure each one locks fully.
• 🔹 Use the 8mm socket and 1/4" drive ratchet to tighten the intake tube clamp until it is snug.
• 🔹 Do not overtighten; just firm enough that the tube cannot rotate or pull off.

Step 12: Reconnect the mass airflow sensor connector

• 🔹 Plug the electrical connector straight back onto the sensor until it clicks.
• 🔹 Push the red or gray locking tab back into the locked position with your finger or the small flathead screwdriver.
• 🔹 Gently tug the connector to confirm it is secure.

Step 13: Final check and torque (if applicable)

• 🔹 On some versions, the air box cover may also have a small screw holding it; if so, use the Torx T20 screwdriver to tighten it to 3 Nm (27 in-lbs) using the torque wrench if possible.
• 🔹 Verify all clips are latched, the clamp is tight, and no tools are left in the engine bay.
• A quick visual check prevents air leaks.

---

✅ After Repair

• 🧪 Start the engine and let it idle for a minute; listen for any unusual hissing noises near the air box or intake tube that could indicate an air leak.
• 🧪 Take a short, gentle drive and confirm there are no warning lights on the dash (especially the check engine light).
• 🧪 After the first drive, open the hood and quickly recheck the intake clamp and clips to ensure they stayed tight.
• 🧪 Note your mileage and consider replacing the air filter about every 15,000–30,000 miles depending on dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60–$120 (parts + labor)

DIY Cost: $20–$45 (parts only)

You Save: $40–$75 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
