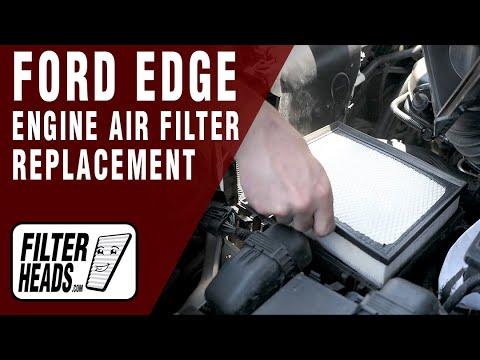

🔧 Edge - Engine Air Filter Replacement

Your Edge’s engine air filter sits inside the air filter box (airbox) and keeps dust out of the turbo and engine. Replacing it is a quick maintenance job that helps performance and fuel economy, and prevents premature wear.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• 🔸 Work with the engine OFF and cool to avoid burns.
• 🔸 Keep dirt/leaves from falling into the intake tube or airbox.
• 🔸 Do not run the engine with the air filter removed.
• 🔸 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" ratchet
• Short 1/4" extension
• Flathead screwdriver
• Work gloves
• Safety glasses
• Shop towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• 🔸 Park on level ground and shift to Park.
• 🔸 Open the hood and locate the airbox (black plastic box connected to the intake tube).
• 🔸 Take a quick photo of how the airbox lid and intake tube sit. Helps with reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the airbox and inspect how it’s fastened

• Find the airbox lid and look for either metal spring clips or small bolts/screws around the lid.
• If you see a hose clamp at the intake tube connection, you’ll loosen it using an 8mm socket (or a flathead screwdriver if it’s a slotted clamp).

Step 2: Release the airbox lid (choose the matching method)

• Clip-style lid: Unlatch the clips by hand or gently with a flathead screwdriver.
• Bolt/screw-style lid: Remove the fasteners using an 8mm socket, 1/4" ratchet, and short 1/4" extension.

Step 3: Lift the lid and remove the old filter

• Carefully lift the airbox lid upward. If the intake tube limits movement, loosen the clamp using the 8mm socket and slide the tube back slightly.
• Pull the old air filter straight out.
• Use a shop towel to wipe out loose debris inside the bottom half of the airbox. Do not push dirt deeper.

Step 4: Install the new air filter correctly

• Place the new filter into the airbox in the same direction as the old one.
• Make sure the filter sits flat and the sealing edge is fully seated all the way around. A crooked seal can cause a vacuum leak.

Step 5: Reassemble the airbox

• Lower the airbox lid into position and confirm it lines up evenly with the bottom half.
• Re-latch the clips by hand, or reinstall fasteners using the 8mm socket and 1/4" ratchet.
• If you loosened the intake clamp, retighten it using the 8mm socket (snug—do not over-tighten).

---

✅ After Repair

• 🔸 Double-check every clip/fastener is secured and the lid is fully closed.
• 🔸 Start the engine and let it idle for 10–20 seconds.
• 🔸 Listen for a hissing sound (can indicate the airbox lid or intake tube isn’t sealed).

---

💰 DIY vs Shop Cost

Shop Cost: ₹1,500-₹3,500 (parts + labor)

DIY Cost: ₹800-₹2,500 (parts only)

You Save: ₹700-₹1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
