🔧 Focus - Engine Air Filter Replacement

Your Focus uses a panel-style engine air filter inside the air cleaner box (airbox). Replacing it helps maintain proper airflow, fuel economy, and throttle response—especially if the old filter is dirty or clogged.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool so you don’t burn yourself on hot parts.
• 🛑 Keep fingers clear of moving parts; work with the engine OFF.
• 🛑 Don’t drop dirt into the airbox or intake tube.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flathead screwdriver
• 7mm socket
• 8mm socket
• 1/4" drive ratchet
• Short 1/4" drive extension (3")
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

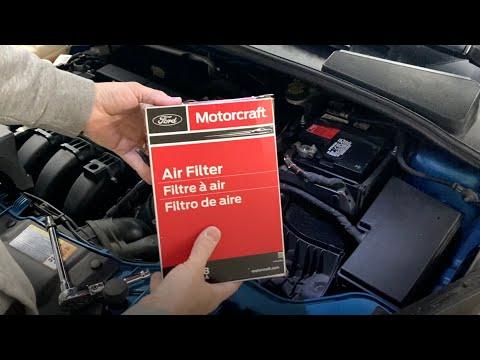

• Engine air filter - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to neutral, and set the parking brake.
• Open the hood and use a flashlight to locate the airbox (black plastic box) connected to the intake tube.
• Take a quick photo before opening it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the airbox

• Use a flashlight to find the airbox in the engine bay (it’s the box that feeds the intake tube going toward the engine).

Step 2: Open the airbox cover

• If your Focus has metal/plastic latches, release them by hand or gently pry with a flathead screwdriver.
• If your Focus has screws instead of latches, loosen them using a 7mm socket or 8mm socket with a 1/4" drive ratchet and 3" extension.
• Lift the airbox lid up enough to access the filter (you usually do not need to remove the whole airbox).

Step 3: Remove the old air filter

• Pull the filter straight out by hand while holding the lid up.
• Check the bottom of the airbox for leaves/sand.

Step 4: Clean out the airbox (lightly)

• Use a flashlight to inspect the airbox.
• Wipe out loose dirt with a clean, dry rag (no wet cleaning inside the intake path).
• Do not let debris fall into the intake tube.

Step 5: Install the new air filter

• Set the new filter into the lower airbox exactly like the old one sat.
• Make sure the filter sits flat and the sealing edge is fully seated all the way around (this prevents “unfiltered” air leaks).

Step 6: Close and secure the airbox

• Lower the lid and make sure it lines up evenly with the bottom half.
• Re-latch the clips by hand, or tighten the screws using a 7mm socket or 8mm socket with a 1/4" drive ratchet.
• Tighten screws snug—do not over-tighten (plastic can crack). Snug is enough.

---

✅ After Repair

• Start the engine and let it idle for 15–30 seconds.
• Listen for any whistling/hissing near the airbox (a sign the lid isn’t sealed).
• Do a short test drive and confirm normal throttle response and no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$130 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$95 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.5 hours.

---
