🔧 Highlander - Engine Air Filter Replacement

Your Highlander’s engine air filter sits in the air box and keeps dust and debris out of the engine. Replacing it is a quick maintenance job that helps airflow and can prevent dirty-air-related performance issues.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from hot parts.
• ⚠️ Keep tools and fingers clear of the radiator fans (they can turn on unexpectedly on some vehicles).
• ⚠️ Do not drive with the air box left open; dirt can be pulled into the engine.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Flathead screwdriver
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool for 15-30 minutes if it was just running.
• 🔎 Open the hood and locate the air filter box (black plastic box with a large intake tube attached).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the air filter housing

• Locate the air filter box on your Highlander (driver-side area of the engine bay, connected to the intake tube).
• Release the metal retaining clips using your fingers; if one is stubborn, gently pry it with a flathead screwdriver.
• If your air box uses retaining bolts, remove them using a 10mm socket, 3" extension, and 1/4" drive ratchet.
• Lift the air box cover straight up just enough to remove the filter. Don’t yank on the intake tube.

Step 2: Remove the old air filter

• Pull the old filter straight out of the air box.
• Use your safety glasses and visually check the bottom of the air box for leaves/sand.
• If debris is present, remove it carefully by hand (with nitrile gloves). Do not let debris fall down the intake opening.

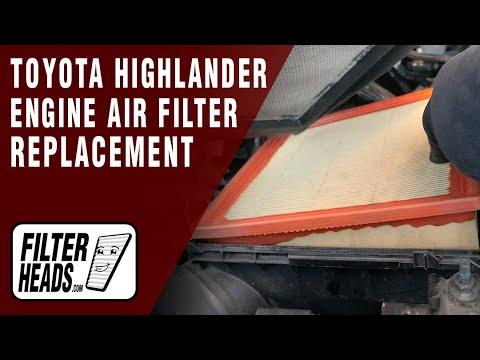

Step 3: Install the new air filter (correct orientation)

• Slide the new filter into the air box in the same direction as the old one.
• Make sure the rubber sealing edge sits flat all the way around (no corners folded). A poor seal lets dirt in.

Step 4: Close and secure the air box

• Lower the air box cover back into place, aligning the tabs/edges.
• Reinstall any bolts using the 10mm socket, 3" extension, and 1/4" drive ratchet, then Torque to 5.4 Nm (48 in-lbs).
• Snap the retaining clips back on by hand until they fully latch.

---

✅ After Repair

• ✅ Double-check that all clips are latched and any 10mm bolts are installed.
• ✅ Start the engine and let it idle for 30 seconds; listen for any hissing/whistling that could indicate the air box isn’t sealed.
• ✅ If a check engine light appears shortly after, re-check that the air box cover is fully seated and latched.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
