🔧 Escape - Engine Air Filter Replacement

Your Escape’s engine air filter sits inside the air cleaner box and keeps dust and debris out of the turbo engine. Replacing it restores airflow and helps performance and fuel economy.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Don’t pull on wiring at the air box; some connectors are fragile.
• ⚠️ Keep dirt out of the open air box; don’t drop anything inside.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flathead screwdriver (medium)
• 7mm socket
• 1/4" drive ratchet
• Small shop vacuum
• Clean microfiber towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to Park.
• Turn the engine off and let it cool for 10–15 minutes.
• Open the hood and locate the air cleaner box (black plastic box connected to the intake tube).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the air cleaner box

• Open the hood and find the air cleaner box at the front/side of the engine bay (it’s the box the intake tube runs into).
• If a wire harness is clipped to the air box cover, gently release it by hand; if needed, use a flathead screwdriver (medium) to lift the clip tab slightly.
• Be gentle—plastic clips snap easily.

Step 2: Loosen the intake tube clamp (if your cover won’t open)

• If the cover is held back by the intake tube, use a 7mm socket with a 1/4" drive ratchet to loosen the worm-gear clamp at the air box outlet.
• Loosen only enough to wiggle the tube back slightly; do not remove the clamp.
• “Worm-gear clamp” = a clamp tightened by a screw.

Step 3: Open the air cleaner box

• Release the air box metal/plastic latches around the perimeter by hand. If they’re stubborn, use the flathead screwdriver (medium) to gently pry the latch open.
• Lift the air box cover just enough to remove the filter.

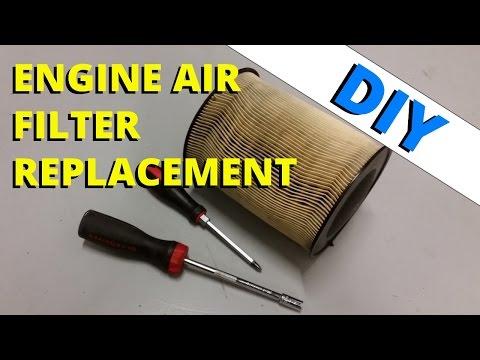

Step 4: Remove the old air filter

• Pull the old filter straight up/out of the air box by hand.
• Note how it’s seated (the rubber edge/gasket should sit flat all the way around).

Step 5: Clean the air box (quickly and safely)

• Use a clean microfiber towel to wipe out loose dust.
• If there’s debris in the lower box, use a small shop vacuum to remove it.
• Do not vacuum into/through the intake tube opening; keep the nozzle in the box only.

Step 6: Install the new air filter

• Place the new filter into the lower air box, matching the same orientation as the old one.
• Press around the edges with your fingers so the filter’s seal sits evenly all the way around.
• If it won’t sit flat, it’s misaligned.

Step 7: Close and secure the air cleaner box

• Lower the air box cover into place and make sure it sits flush.
• Re-latch all the latches by hand.
• If you loosened the clamp, tighten it using the 7mm socket and 1/4" drive ratchet until snug.
• Torque: Not specified for this clamp; tighten snug and stop when the tube can’t rotate by hand.

Step 8: Final check

• Re-clip any harnesses you moved back onto the air box by hand.
• Visually check that the air box cover is fully seated and all latches are locked.

---

✅ After Repair

• Start the engine and let it idle for 30 seconds.
• Listen for any hissing/whistling that could indicate an air leak at the air box or intake tube.
• If a check engine light appears, re-check that the intake tube is fully seated and the clamp is snug.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$130 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$95 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
