🔧 Equinox - Engine Air Filter Replacement

You’ll be replacing the engine air filter in your Equinox to help the engine breathe better, improve performance, and protect it from dust and debris. This is a great first DIY job and takes only a few basic tools.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• 🔸Always work with the engine off and the key removed from the ignition.
• 🔸Let the engine bay cool for at least 15–20 minutes if the vehicle was just driven; parts can be hot.
• 🔸Do not unplug or tug on any electrical connectors near the air intake, especially the mass air flow (MAF) sensor.
• 🔸Keep tools and hardware out of the engine bay so nothing falls into the intake opening.
• 🔸Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸Ratchet handle (1/4" drive)
• 🔸8mm socket
• 🔸6" extension (1/4" drive)
• 🔸Flathead screwdriver (medium size)
• 🔸Work gloves
• 🔸Safety glasses
• 🔸Small clean shop towel or rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Engine air filter element (panel type, for 3.6L) - Qty: 1
• 🔸Mass air flow sensor cleaner (optional) - Qty: 1

---

📋 Before You Begin

• 🔸Park your Equinox on level ground, shift to Park, and set the parking brake.
• 🔸Open the hood and use the hood prop rod to secure it.
• 🔸Locate the air filter housing: it’s a black plastic box on the driver side of the engine bay, with a large plastic tube running from it toward the engine.
• 🔸Remove any loose dirt or leaves from around the air box with your hand or a rag so they don’t fall inside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify how your air box is fastened

• 🔸Look at the top cover of the air filter housing.
• 🔸You will typically see either:
  • Metal or plastic clips along the edges, or
  • Several small bolts or screws (usually 8mm head).
• 🔸If there are clips, you won’t need the 8mm socket for those, just your hands or the flathead screwdriver to pry gently.
• Check all sides so you don’t miss a fastener.

Step 2: Loosen intake hose clamp (if needed)

• 🔸On many 3.6L Equinox models, the air box cover is attached to a large intake hose with a metal band clamp.
• 🔸Use the flathead screwdriver or 8mm socket with ratchet handle to loosen the clamp screw on this hose where it meets the air box cover.
• 🔸Turn the screw counterclockwise a few turns until the hose can move slightly on the plastic lip.
• Do not fully remove the clamp screw, just loosen it.

Step 3: Release air box cover fasteners

• 🔸If you have clips:
  • Use your fingers or the tip of the flathead screwdriver to gently pry each clip away from the cover.
  • Let each clip swing open or hang; do not remove them completely.
• 🔸If you have bolts or screws:
  • Use the 8mm socket, 6" extension, and ratchet handle to remove each bolt counterclockwise.
  • Place bolts in a safe spot so they don’t fall into the engine bay.
  • Torque on reinstallation: 3 Nm (27 in-lbs) (this is just gently snug).
• Make sure every clip/bolt is released before lifting the cover.

Step 4: Open the air box cover

• 🔸With all clips/bolts released, gently lift the air box cover.
• 🔸You may need to:
  • Wiggle the cover slightly to free it from locating tabs, and
  • Slide it a bit toward the engine to clear the filter.
• 🔸Do not pull hard on any wires or sensors attached to the intake tube.
• Only open it enough to remove the filter comfortably.

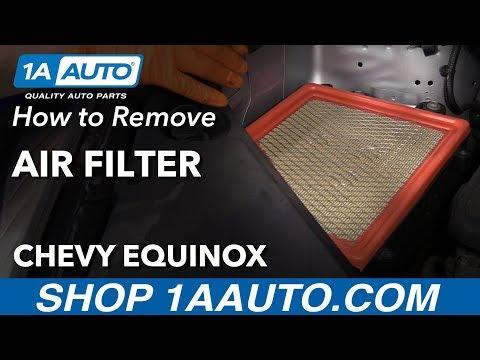

Step 5: Remove the old air filter

• 🔸Lift the old filter straight up and out by hand.
• 🔸Note how it sits in the box (orientation, which side faces up).
• 🔸Use the small clean shop towel or rag to gently wipe out any loose dirt or leaves from inside the lower half of the air box.
• 🔸Do not wipe or touch any delicate sensor elements in the intake tube.
• Do not let dirt fall into the intake opening.

Step 6: (Optional) Inspect or clean around the MAF sensor

• 🔸The mass air flow (MAF) sensor measures air going into the engine; it’s usually mounted in the intake tube near the air box.
• 🔸If you bought mass air flow sensor cleaner, you can:
  • Leave the sensor plugged in and in place.
  • Lightly spray the sensor area following instructions on the can.
  • Let it dry fully (usually a few minutes) before reassembly.
• 🔸Do not use regular cleaners (like brake cleaner) on the MAF sensor.
• This step is optional but can help smooth running.

Step 7: Install the new air filter

• 🔸Place the new engine air filter into the lower air box.
• 🔸Make sure:
  • The rubber or foam sealing edge sits flat all the way around.
  • The filter is fully seated in its grooves, not sitting on top of any lip.
• 🔸The pleated paper side faces the incoming air (same as the old one).
• If it won’t sit flat, remove and reseat it.

Step 8: Refit the air box cover

• 🔸Lower the air box cover back into place, making sure:
  • Any tabs on one side slide into their slots first, and
  • The cover sits evenly on top of the new filter with no gaps.
• 🔸If needed, push the intake hose back fully onto the air box outlet.
• Cover should not rock or pinch the filter.

Step 9: Secure the air box cover and hose clamp

• 🔸For clips:
  • Snap each clip back into place by hand until it clicks.
• 🔸For bolts/screws:
  • Use the 8mm socket, 6" extension, and ratchet handle to tighten each bolt clockwise.
  • Torque: 3 Nm (27 in-lbs) – just snug; do not overtighten, as the cover is plastic.
• 🔸Tighten the intake hose clamp with the flathead screwdriver or 8mm socket until the hose cannot twist easily by hand.
• Even, light pressure is enough; avoid stripping the clamp screw.

Step 10: Final checks

• 🔸Visually inspect all around the air box:
  • No gaps between lid and base.
  • All clips engaged or all bolts installed.
  • Intake hose seated and clamp tightened.
• 🔸Remove any tools and rags from the engine bay.
• Close the hood securely when finished.

---

✅ After Repair

• 🔸Start the engine and let it idle for a minute; listen for any unusual hissing near the air box that could indicate an air leak.
• 🔸Gently rev the engine once or twice; it should respond smoothly.
• 🔸If the check engine light comes on after the repair, recheck that the air box cover is sealed and that all hoses and connectors are fully attached.
• 🔸Plan to replace the engine air filter about every 20,000–30,000 miles, or sooner if you drive in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60–$110 (parts + labor)

DIY Cost: $20–$40 (parts only)

You Save: $40–$70 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
