🔧 Equinox - Engine Air Filter Replacement

You’ll be replacing the engine air filter in your Equinox to help the engine breathe better and improve performance and fuel economy. The filter sits in a plastic box in the engine bay and is easy to access with basic tools.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• 🚫 Make sure the engine is off, the key is removed, and the engine is cool to avoid burns.
• 🔌 You do not need to disconnect the battery for this job.
• 🧤 Keep fingers and tools away from the radiator fan; it can sometimes start if the engine is hot, even with ignition off.
• 😷 Avoid breathing in dust from the old filter; tap it gently away from your face.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 8mm socket
• 🧰 1/4" drive ratchet
• 🧰 3" socket extension
• 🧰 Flathead screwdriver (6–8mm tip)
• 🧰 Shop vacuum (with small nozzle)
• 🧰 Clean shop towels or microfiber cloths
• 🧰 Mechanic gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine air filter element (2.4L) - Qty: 1
• 🔩 Air filter housing clips - Qty: 2–4 (only if any are broken)

---

📋 Before You Begin

• 🚗 Park the Equinox on level ground, shift to Park, and set the parking brake.
• 🔑 Turn the ignition fully off and remove the key.
• 🧊 Let the engine cool for at least 10–15 minutes if it was just running.
• 💡 Open the hood using the interior hood release, then lift the hood and secure it with the hood prop rod.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the engine air filter box

• Open the hood and stand in front of the vehicle.
• The engine air filter box is the black plastic box on the driver’s side front corner of the engine bay, with a large plastic intake tube (duct) going toward the engine.
• Think of it as the “air intake box.”

Step 2: Inspect how the cover is held on

• On your Equinox, the airbox cover is usually secured by several 8mm screws around the top edge.
• Some may also have plastic clips or tabs on one side that hook into the lower half of the box.
• Look around the perimeter so you know where each screw or clip is before you start.

Step 3: Loosen the intake duct clamp (if needed)

• Find the metal band clamp that holds the large plastic intake tube to the airbox cover.
• Use the flathead screwdriver or 8mm socket and ratchet to loosen the clamp screw a few turns.
• You do not need to remove the clamp completely—just loosen it enough so the tube can slide off the fitting if extra movement is needed.
• Only loosen until the tube can wiggle freely.

Step 4: Remove the airbox cover screws

• Use the 8mm socket, extension, and ratchet to remove each screw holding the airbox cover.
• Place the screws in a small tray or pocket so they don’t fall into the engine bay.
• If you see any plastic clips instead of screws, gently pry them open with the flathead screwdriver.
• Turn the ratchet slowly; these screws are small.

Step 5: Lift and move the airbox cover

• Gently lift the airbox cover straight up from the side opposite the intake tube.
• If there are tabs/hooks on one side, slide that side out carefully once it is lifted.
• If the intake tube is tight, gently pull or twist the tube off the airbox cover while lifting.
• Do not yank; move slowly to avoid cracking the plastic.

Step 6: Remove the old air filter

• You will see the rectangular air filter sitting inside the lower half of the airbox.
• Note its orientation: which side faces up and how it fits in the box.
• Lift the old filter straight up with your hands and remove it.
• Hold it away from your face and gently tap it on the ground if you’re curious how dirty it is.

Step 7: Clean the airbox

• Use the shop vacuum with a small nozzle to carefully vacuum out any leaves, dust, or debris from the bottom of the airbox.
• Do not poke or damage the plastic; keep the nozzle away from any wiring nearby.
• Use a clean shop towel to wipe the sealing surfaces (where the filter edge sits) so they’re clean and smooth.
• A clean box helps the new filter seal well.

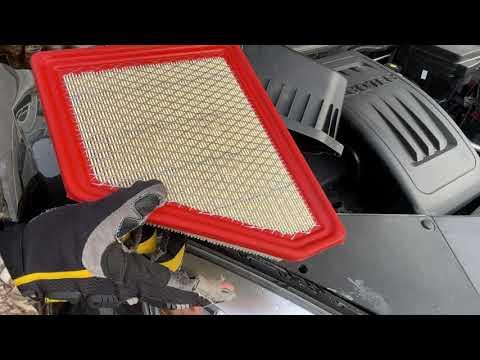

Step 8: Install the new air filter

• Take the new engine air filter out of its packaging.
• Make sure the rubber or foam seal around the edge is intact and not damaged.
• Place the new filter into the lower airbox in the same orientation as the old one—flat side down, pleats vertical, fully seated in the groove.
• Press lightly around the edges with your fingers to ensure it sits evenly and flat all the way around.

Step 9: Reinstall the airbox cover

• Position the airbox cover back over the new filter, aligning any tabs/hooks on one side first.
• Make sure the edges of the cover sit down evenly on the lower half and do not pinch the filter.
• Once aligned, reinstall each screw by hand first to avoid cross-threading.
• Then use the 8mm socket, extension, and ratchet to snug each screw.
• Tighten until they are just snug, not very tight; they only need light pressure to seal the cover.
• If the cover rocks, a screw is still loose.

Step 10: Tighten the intake duct clamp

• Slide the intake tube fully onto the airbox cover fitting if you removed or loosened it.
• Use the flathead screwdriver or 8mm socket and ratchet to tighten the band clamp until the tube is secure and cannot twist easily by hand.
• Do not overtighten; just firm enough so the tube will not slip off.

Step 11: Final checks

• Look around the airbox: verify all screws or clips are reinstalled and seated.
• Check that the intake tube is fully seated and the clamp is tight.
• Make sure no tools, towels, or parts are left in the engine bay.
• Lower the hood prop rod and close the hood firmly.

---

✅ After Repair

• 🔑 Start the engine and let it idle for a minute. Listen for any unusual hissing sounds near the airbox that might indicate a loose tube or poor seal.
• 🚗 Take a short drive. The engine should run smoothly; most of the time you won’t feel a dramatic change, but throttle response may be slightly better.
• 📅 Plan to replace the engine air filter roughly every 20,000–30,000 miles, or more often in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60–$110 (parts + labor)

DIY Cost: $15–$35 (parts only)

You Save: $45–$75 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
