🔧 LaCrosse - Electric Power Steering (EPS) Steering Gear Replacement

Your LaCrosse uses Electric Power Steering (EPS), which means it does not have a hydraulic power steering pump or power steering fluid. If you’re losing assist, have a steering warning light, or hear motor/gear noise, the typical “pump replacement” fix is replacing the EPS steering gear (rack assembly) or addressing power/ground/codes.

Difficulty Level: Advanced | Estimated Time: 5-8 hours

Assumption: Stock EPS system (no hydraulic pump).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working near the steering column/gear to reduce airbag risk.
• ⚠️ Keep the steering wheel centered and locked once the intermediate shaft is disconnected—do not let it spin or you can damage the clockspring (the ribbon cable inside the steering wheel).
• ⚠️ Support the vehicle with jack stands on solid points; never rely on a floor jack.
• ⚠️ Plan on a professional wheel alignment after this job.
• ⚠️ EPS systems may require scan-tool setup/calibration after replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8"
• Torque wrench 1/2"
• Socket set 8mm-24mm (3/8" drive)
• Socket set 10mm-24mm (1/2" drive)
• Wrench set 10mm-24mm
• Torx bit set T20-T60
• E-Torx socket set E10-E18
• Trim clip removal tool
• Needle-nose pliers
• Pry bar (medium)
• Paint marker
• Tie rod end puller (specialty)
• Steering wheel holding strap (specialty)
• Scan tool capable of GM EPS functions (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Electric power steering gear (rack) assembly - Qty: 1
• Steering intermediate shaft pinch bolt - Qty: 1
• Outer tie rod end cotter pins - Qty: 2
• Subframe/steering gear mounting bolts (if one-time-use) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, straighten the front wheels, and set the parking brake.
• Use wheel chocks behind the rear tires.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable, then wait at least 2 minutes.
• Use a steering wheel holding strap to keep the steering wheel from turning.
• Use a paint marker to mark the relationship between the intermediate shaft and steering gear input.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 3-ton minimum) under solid support points and lower onto them.
• Remove both front wheels using a breaker bar 1/2" and the correct lug socket.

Step 2: Remove underbody shields as needed

• Remove splash shields/undertray fasteners using a trim clip removal tool and socket set 8mm-24mm (3/8" drive).
• Set all clips/bolts aside in a tray so you don’t lose them.

Step 3: Disconnect the outer tie rod ends from the steering knuckles

• Remove the cotter pin using needle-nose pliers.
• Remove the tie rod end nut using a wrench set 10mm-24mm or socket set 10mm-24mm (1/2" drive).
• Separate the joint using a tie rod end puller (specialty) (this presses it apart without hammering).
• Tip: Count turns if removing tie rods.

Step 4: Disconnect the EPS electrical connectors

• Locate the EPS motor/module connectors on the steering gear.
• Release connector locks using a trim clip removal tool (small flat tip works like a pick).
• Unplug connectors and secure the harness out of the way.

Step 5: Disconnect the steering intermediate shaft from the steering gear

• Confirm the steering wheel is still centered and held with the steering wheel holding strap (specialty).
• Use a paint marker to re-check your alignment marks.
• Remove the intermediate shaft pinch bolt using an E-Torx socket set E10-E18 or appropriate socket set.
• Slide the intermediate shaft off the steering gear input; use a pry bar (medium) gently if stuck.

Step 6: Support and lower the front subframe as required for clearance

• Place a floor jack (rated 3-ton minimum) under the subframe with a block of wood to spread load.
• Loosen (do not fully remove at first) key subframe bolts using a breaker bar 1/2" and socket set 10mm-24mm (1/2" drive).
• Lower the subframe slightly for steering gear removal clearance.
• Tip: Lower slowly and watch hoses/wires.

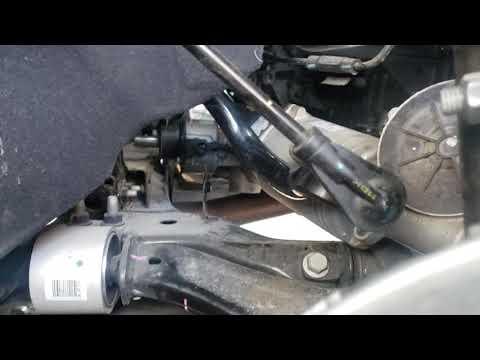

Step 7: Remove the steering gear (rack) from the subframe

• Remove steering gear mounting fasteners using an E-Torx socket set E10-E18 and breaker bar 1/2".
• Work the steering gear out through the wheel well/opening; use a pry bar (medium) only as needed.

Step 8: Install the new steering gear

• Compare the new steering gear to the old one (mounts and connectors match).
• Slide the new unit into position and hand-start all mounting bolts using a socket set.
• Tighten mounting bolts using a torque wrench 1/2" to OEM specification.

Step 9: Reconnect the intermediate shaft and electrical connectors

• Align your paint marks and slide the shaft onto the steering gear input.
• Install a new steering intermediate shaft pinch bolt and tighten using a torque wrench 3/8" to OEM specification.
• Reconnect EPS electrical connectors until the locks click.

Step 10: Reconnect tie rod ends and reassemble

• Install tie rod ends into the knuckles and tighten the nuts using a torque wrench to OEM specification.
• Install new cotter pins using needle-nose pliers.
• Reinstall splash shields using a socket set 8mm-24mm (3/8" drive) and trim clip removal tool.
• Reinstall wheels and hand-start lug nuts using a socket set.

Step 11: Lower the vehicle and reconnect the battery

• Lower the car off the stands using a floor jack (rated 3-ton minimum).
• Tighten lug nuts with a torque wrench 1/2" to OEM specification in a star pattern.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Turn the key on and confirm the steering wheel stays straight and the EPS warning light goes out.
• Use a scan tool capable of GM EPS functions (specialty) to clear codes and perform any required EPS setup (often steering angle/torque sensor calibration).
• With the front tires on the ground, slowly turn lock-to-lock once and re-check for noises.
• Get a 4-wheel alignment as soon as possible (same day is best).

---

💰 DIY vs Shop Cost

Shop Cost: $1,400-$2,600 (parts + labor)

DIY Cost: $650-$1,600 (parts only)

You Save: $750-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 5-8 hours.

---
