🔧 Fusion - A/C Compressor Replacement

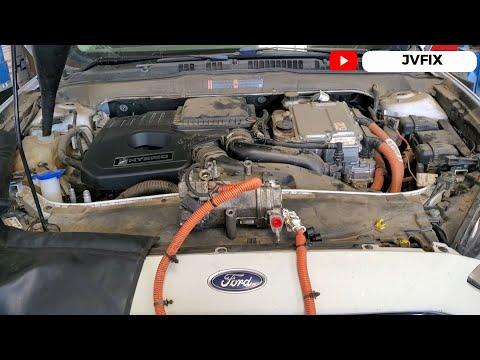

On your Fusion Hybrid, the A/C compressor is an electric high-voltage (HV) unit, not a belt-driven one. Replacing it involves safely powering down the hybrid system, recovering the refrigerant, swapping the compressor, then vacuuming and recharging the A/C system.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Torque specs and refrigerant charge amount are verified from the under-hood A/C label/service info during the job.

---

⚠️ Safety & Precautions

• ⚠️ High voltage hazard: The A/C compressor on your Fusion uses HV power. Improper handling can cause severe injury or death.
• ⚠️ Use HV PPE: Wear Class 0 insulated gloves (rated to 1000V) with leather protectors anytime you’re near orange HV connectors.
• ⚠️ Disable the hybrid system: Remove the HV service disconnect and wait at least 5 minutes for capacitors to discharge before touching HV connectors.
• ⚠️ Do not vent refrigerant: Recover R-134a using proper equipment. Venting is illegal and dangerous.
• ⚠️ Oil contamination warning: Hybrid electric compressors require ND-11 (POE) compressor oil. Do not use PAG oil or shared shop equipment contaminated with PAG.
• ⚠️ Support the car safely: Use jack stands on proper lift points; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class 0 insulated gloves with leather protectors
• CAT III digital multimeter (1000V rated)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim panel tool set
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension
• Torque wrench (10–80 Nm range)
• Line/flare-nut wrench set (metric)
• Pick tool set
• Plastic caps/plugs for A/C lines
• A/C manifold gauge set for R-134a (specialty)
• Refrigerant recovery machine for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Scan tool capable of reading/clearing hybrid & HVAC DTCs (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C electric compressor (hybrid-specific) - Qty: 1
• A/C compressor line O-ring set (R-134a compatible) - Qty: 1
• ND-11 (POE) electric A/C compressor oil - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood A/C label
• New fasteners/clips for splash shield (as needed) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use wheel chocks to block the rear wheels.
• Have a plan to recover refrigerant before opening any A/C line.
• Understand these terms: HV service disconnect is the removable safety plug that shuts off the high-voltage battery output; it must be removed before HV work.
• Keep the key fob away from the car (at least 15 feet) so the hybrid system can’t wake up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set for R-134a (specialty) to the high/low service ports.
• Use the refrigerant recovery machine for R-134a (specialty) to fully recover the system.
• Never loosen lines with pressure in system.

Step 2: Power down and isolate the hybrid high-voltage system

• Open the trunk and access the hybrid battery service area using a trim panel tool set.
• Remove the HV service disconnect plug (orange). Follow the plug’s lock/unlock motion exactly.
• Wait at least 5 minutes for the system to discharge.
• Disconnect the 12V battery negative cable using a 10mm socket.

Step 3: Verify high voltage is not present at the compressor connector

• Raise the front of the car using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Wear Class 0 insulated gloves with leather protectors.
• At the A/C compressor HV connector (orange wiring), use a CAT III digital multimeter (1000V rated) to confirm no voltage is present before disconnecting.

Step 4: Remove the lower splash shield

• Remove the underbody fasteners using an 8mm socket and a trim panel tool set.
• Set fasteners aside in a tray so you don’t lose them.

Step 5: Disconnect electrical connectors at the compressor

• Disconnect the compressor HV connector (orange) by releasing the lock and pulling straight off (do not pry) while wearing Class 0 insulated gloves with leather protectors.
• Disconnect any low-voltage control connector using a pick tool set to gently lift the tab if needed.
• Inspect connectors for corrosion or coolant/oil contamination.

Step 6: Disconnect the A/C refrigerant lines from the compressor

• Place shop rags under the fittings (a small amount of oil may drip).
• Remove the line retaining bolt(s) using a 10mm socket (some fittings may use 13mm socket depending on build).
• Carefully wiggle the lines free; do not bend the aluminum tubes.
• Immediately cap the open lines using plastic caps/plugs for A/C lines.
• Remove old O-rings with a pick tool set.
• Torque to 10 Nm (89 in-lbs) for the refrigerant line retaining bolt(s) during reassembly.

Step 7: Remove the A/C compressor

• Support the compressor with one hand as you remove the mounting bolts using a 13mm socket and 3/8" drive ratchet.
• Lower the compressor out carefully; it’s heavier than it looks.
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts during reassembly.

Step 8: Prepare and install the new compressor

• Verify the replacement compressor matches the original (ports, connectors, mounting ears).
• Add/confirm the correct amount of ND-11 (POE) electric A/C compressor oil per the compressor instructions/service info.
• Lightly coat new O-rings with a small amount of ND-11 (POE) electric A/C compressor oil and install them on the line ends.
• Position the compressor and hand-start bolts, then tighten with a torque wrench (10–80 Nm range).
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts.

Step 9: Reconnect A/C lines and electrical connectors

• Reconnect the refrigerant lines and tighten the retaining bolt(s) using a 10mm socket, then final-tighten with a torque wrench (10–80 Nm range).
• Torque to 10 Nm (89 in-lbs) for the line retaining bolt(s).
• Reconnect the low-voltage connector by pushing until it clicks.
• Reconnect the HV connector (orange) and confirm the lock is fully seated while wearing Class 0 insulated gloves with leather protectors.

Step 10: Reinstall the splash shield

• Reinstall the underbody shield using an 8mm socket and trim panel tool set.
• Lower the vehicle using the floor jack (rated 3-ton minimum).

Step 11: Evacuate and recharge the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty).
• Use the vacuum pump (specialty) to pull vacuum for at least 30–45 minutes.
• Close valves and verify it holds vacuum for 10 minutes (leak check).
• Recharge with R-134a refrigerant using a refrigerant scale (specialty) to the exact weight listed on the under-hood A/C label.
• Charging by pressure is inaccurate.

Step 12: Re-enable the hybrid system and clear codes

• Reconnect the 12V battery negative cable using a 10mm socket.
• Reinstall the orange HV service disconnect plug and secure its lock.
• Use a scan tool capable of reading/clearing hybrid & HVAC DTCs (specialty) to clear any stored HVAC/hybrid codes.

---

✅ After Repair

• Start the car (READY mode) and set A/C to MAX; confirm cold air and stable vent temperature.
• Check for leaks at the compressor line connections (look for oily residue and listen for hissing).
• Verify the radiator fans behave normally with A/C on.
• Test drive 10–15 minutes and recheck for warning lights.
• If A/C performance is poor, recover/recheck charge by weight and inspect for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $450-$1,200 (parts only, assuming access to A/C equipment)

You Save: $750-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
