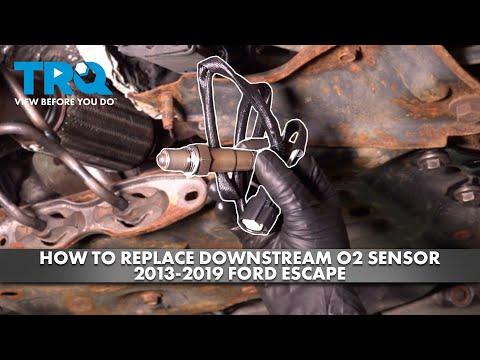

🔧 Escape - Downstream Oxygen Sensor Replacement

The downstream oxygen sensor is located after the catalytic converter and monitors catalyst efficiency. On your Escape, replacing it involves safely raising the vehicle, unplugging the sensor connector, removing the old sensor, and installing the new one without twisting the wiring.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching it. Oxygen sensors thread into the exhaust, which can stay hot long after driving.
• 🧤 Wear safety glasses and gloves. Rust, dirt, and penetrating oil can fall while working underneath.
• 🚗 Support your Escape with jack stands before going underneath. Never rely on a floor jack alone.
• 🔋 Battery disconnect is not normally required for this repair, but keep the ignition fully OFF while unplugging the sensor.
• 🧯 Use penetrating oil carefully and keep it away from hot exhaust parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 22mm oxygen sensor socket (specialty)
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 10mm socket
• Trim clip removal tool
• Torque wrench rated 10-80 Nm
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Penetrating oil
• Wire brush
• Nitrile gloves
• Safety glasses
• OBD-II scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Downstream oxygen sensor - Qty: 1
• Oxygen sensor anti-seize compound - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Escape on a flat, solid surface and shift to Park.
• 🧱 Place wheel chocks behind the rear wheels before lifting the front.
• ❄️ Let the exhaust cool for at least 45-60 minutes if the vehicle was recently driven.
• 🔍 The downstream oxygen sensor is the sensor after the catalytic converter, not the one closest to the engine.
• 🧰 An oxygen sensor socket is a slotted 22mm socket that fits over the sensor wire while loosening the sensor.
• 📟 Have an OBD-II scan tool ready to clear the fault code after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Vehicle

• Use wheel chocks to block the rear wheels.
• Use a floor jack rated 3-ton minimum to lift the front of your Escape at the front subframe lift point.
• Place jack stands rated 3-ton minimum under the approved front support points.
• Slowly lower the vehicle onto the jack stands and gently shake the vehicle to confirm it is stable.
• Never work under only a jack.

Step 2: Locate the Downstream Oxygen Sensor

• Use safety glasses and nitrile gloves before working under the vehicle.
• Look along the exhaust pipe behind the catalytic converter.
• The downstream oxygen sensor has a wire harness coming from the sensor body and plugs into a connector clipped to the body or bracket.
• Do not remove the upstream sensor near the turbocharger or front of the catalytic converter.

Step 3: Remove Any Shield or Harness Retainer Blocking Access

• If an underbody shield or small splash panel blocks access, use a 10mm socket to remove its fasteners.
• If plastic clips hold the wiring, use a trim clip removal tool to release them gently.
• Set all fasteners aside in order so they go back in the same place.

Step 4: Unplug the Oxygen Sensor Connector

• Use your fingers to press the locking tab on the oxygen sensor connector.
• If the connector is tight, use the trim clip removal tool only to help release the retainer, not to pry inside the terminals.
• Pull on the connector body, not the wires.
• Do not yank the harness.

Step 5: Apply Penetrating Oil

• Use penetrating oil on the oxygen sensor threads where the sensor enters the exhaust pipe.
• Let it soak for 10-15 minutes.
• Use a wire brush to clean rust and dirt around the sensor base.

Step 6: Remove the Old Downstream Oxygen Sensor

• Slide the 22mm oxygen sensor socket over the sensor wire and onto the sensor hex.
• Attach the 3/8-inch drive 6-inch extension and 3/8-inch drive ratchet.
• Turn counterclockwise to loosen and remove the sensor.
• If it feels stuck, apply more penetrating oil and work it back and forth gently.
• Slow pressure prevents thread damage.

Step 7: Prepare the New Sensor

• Compare the new downstream oxygen sensor to the old one. The connector shape, wire length, and sensor tip should match.
• If the new sensor threads are not already coated, apply a small amount of oxygen sensor anti-seize compound only to the threads.
• Keep anti-seize away from the sensor tip. The tip is the small sensing end that sits inside the exhaust stream.

Step 8: Install the New Downstream Oxygen Sensor

• Thread the new sensor into the exhaust by hand first to avoid cross-threading.
• Use the 22mm oxygen sensor socket, 3/8-inch drive 6-inch extension, and torque wrench rated 10-80 Nm to tighten it.
• Torque to 48 Nm (35 ft-lbs).
• Route the wire the same way the original wire was routed.
• Make sure the wire is away from the exhaust pipe and moving AWD driveline parts.

Step 9: Reconnect the Electrical Connector

• Push the oxygen sensor connector together until it clicks.
• Use the trim clip removal tool to reinstall any wiring retainers that were removed.
• Confirm the harness has slack and is not pulled tight.

Step 10: Reinstall Any Removed Shielding

• Reinstall any underbody shield or splash panel removed earlier.
• Use the 10mm socket to tighten the shield fasteners snugly.
• If Ford-style small shield bolts are present, tighten them carefully to avoid stripping.
• Torque small M6 shield bolts to 8 Nm (71 in-lbs).

Step 11: Lower the Vehicle

• Use the floor jack rated 3-ton minimum to lift slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Escape slowly to the ground.
• Remove the wheel chocks.

Step 12: Clear Codes and Check Operation

• Connect an OBD-II scan tool to the diagnostic port under the driver side dash.
• Turn the ignition ON without starting the engine.
• Use the scan tool to clear stored oxygen sensor or catalyst monitor codes.
• Start the engine and let it idle.
• Check under the vehicle for exhaust leaks near the sensor.

---

✅ After Repair

• ✅ The check engine light should stay off after codes are cleared, unless another fault is present.
• 🚘 Drive normally for several trips so the catalyst and oxygen sensor monitors can complete.
• 👂 Listen for ticking noises from the sensor area, which can indicate an exhaust leak.
• 📟 If a code returns immediately, recheck the connector, wiring route, and sensor location.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $160-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
