🔧 Highlander - Cabin Air Filter Replacement

You’ll be replacing the cabin air filter that cleans the air coming through the AC and heater into the cabin. On your Highlander, it sits behind the glove box and is easy to access from inside the car.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• 🛑 Turn the engine off and switch the ignition to OFF before starting.
• 🛑 Set the parking brake so the vehicle cannot move.
• 🛑 Do not run the blower fan while the filter is removed to avoid pulling dust into the system.
• 🛑 Work gently around the glove box so you don’t crack plastic parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Flashlight
• 🧰 Small flat trim tool or flathead screwdriver (6 mm tip)
• 🧰 Clean shop towel or microfiber cloth
• 🧰 Disposable gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Cabin air filter (HVAC) - Qty: 1
• 🔩 Interior cleaner or mild disinfectant spray - Qty: 1 (optional)

---

📋 Before You Begin

• 🚗 Park on level ground, set the parking brake, and turn ignition OFF.
• 📦 Empty the glove box so nothing falls out when it drops down.
• 🧤 Put on gloves and safety glasses to keep dust out of your eyes and hands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and prepare the glove box

• Open the glove box fully by pulling the handle.
• Remove any items inside so you can move it freely.
• Use the flashlight to look along the right side of the glove box for a small arm or rod (the damper).
• Remember where items were for easy reloading later.

Step 2: Disconnect the glove box damper

• The damper is a small plastic arm that slows how fast the glove box drops.
• On the right side of the glove box, gently push the arm outward with your hand.
• If it’s tight, use the small flat trim tool or flathead screwdriver (6 mm tip) to gently pry the damper off its pin.
• Let the arm hang freely once it’s disconnected.
• Be gentle to avoid breaking the damper clip.

Step 3: Drop the glove box to access the filter cover

• On both sides of the glove box, the plastic sides will rest against small stops.
• Push the sides of the glove box inward with your hands so they clear the stops.
• Let the glove box swing down toward the floor; support it with one hand so it doesn’t drop hard.
• Behind the glove box, use the flashlight to find a rectangular plastic cover (this is the cabin filter door) in the center area.

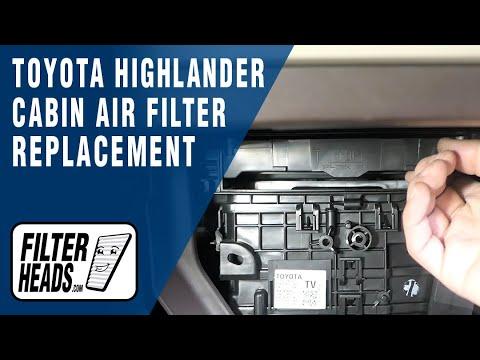

Step 4: Remove the cabin filter cover

• On the filter cover, locate the small locking tabs on each side or one side depending on design.
• Press the tab(s) inward with your fingers.
• Pull the cover straight toward you to remove it.
• Set the cover aside where it won’t get lost.

Step 5: Remove the old cabin air filter

• Grip the exposed edge of the filter and carefully slide it straight out.
• If it resists, wiggle it slightly while pulling with your hand.
• Hold it upright to avoid shaking dust and debris into the cabin.
• Note the direction of the airflow arrow printed on the filter frame; usually it points down on Toyota vehicles.
• Take a quick photo of the old filter in place for reference.

Step 6: Clean the filter housing area

• Use the clean shop towel or microfiber cloth to gently wipe inside the filter slot and around the opening.
• If you like, lightly spray the towel with interior cleaner or mild disinfectant spray and wipe the plastic surfaces (do not soak).
• Do not spray liquid directly into the HVAC housing.

Step 7: Install the new cabin air filter

• On the new filter, locate the airflow arrow printed on its side.
• On your Highlander, the arrow should point down (toward the floor) when installed.
• Carefully slide the new filter into the slot, keeping it straight so it does not bend or crush.
• Push it all the way in until it is fully seated and flush with the housing edge.
• If it won’t slide in, rotate it 180° and try again.

Step 8: Reinstall the cabin filter cover

• Align the cover with the opening; usually the tabs go on one side first.
• Push the cover into place until you hear or feel it click into the locking tabs.
• Check that it is evenly seated all around so it doesn’t rattle.

Step 9: Reattach and close the glove box

• Lift the glove box back up toward its normal position.
• Push in on both sides of the glove box again so they clear the stops, then let them rest back on the stops.
• On the right side, line up the damper arm with its pin and press it back on by hand until it clicks into place.
• Open and close the glove box a few times to make sure it moves smoothly and doesn’t slam.

Step 10: Reload the glove box

• Put your items back into the glove box.
• Make sure nothing is interfering with the latch or hinge area.

---

✅ After Repair

• 🔄 Turn the ignition ON (engine can stay off) and switch on the blower fan.
• 👃 Check that air is flowing normally from the vents on all fan speeds.
• 🔊 Listen for any unusual noises near the glove box area that might indicate the cover is loose or something is touching the blower.
• 📅 Plan to replace the cabin filter about once a year, or more often if you drive in dusty or polluted conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $45-$80 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
