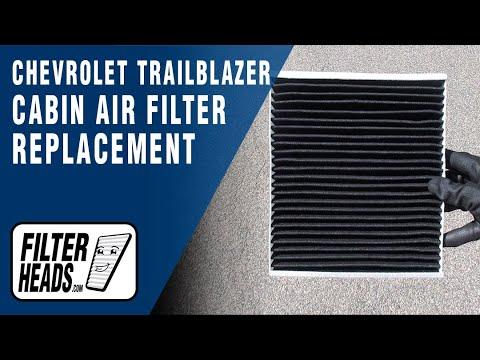

🔧 Trailblazer - Cabin Air Filter Replacement

Your Trailblazer’s cabin air filter cleans the air that comes through the HVAC vents. Replacing it restores airflow and helps reduce dust, pollen, and odors inside the cabin.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• 🛑 Park on level ground, shift to Park, and set the parking brake.
• 🧤 If you’re sensitive to dust, wear gloves and a dust mask when removing the old filter.
• 🔑 Keep the ignition OFF while working around the glove box area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool (plastic)
• Flashlight
• Nitrile gloves
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Open the passenger door for easier access to the glove box area.
• Remove items from the glove box so nothing falls out when it drops down.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Open the glove box fully by hand.
• Remove all contents so they don’t spill.
• Use a flashlight to see the right-side damper and filter access area.

Step 2: Disconnect the glove box damper

• On the right side of the glove box, locate the small “damper” arm (it slows the glove box as it opens).
• Use a trim removal tool (plastic) to gently pry the damper off its pin (do not yank it).
• Tip: Pry close to the clip, not the middle.

Step 3: Release the glove box stops and lower it

• With the glove box open, press inward on both glove box side walls with your hands to clear the plastic “stops.”
• Let the glove box swing downward slowly.

Step 4: Remove the cabin filter cover

• Behind the lowered glove box, find the cabin filter access door/cover (rectangular panel).
• Use a trim removal tool (plastic) (or your fingers) to press the locking tabs and pull the cover off.

Step 5: Remove the old cabin air filter

• Put on nitrile gloves and a dust mask.
• Slide the old filter straight out.
• Note the airflow arrow on the filter frame (you’ll match this on the new filter).

Step 6: Install the new cabin air filter

• Compare the new filter to the old one to confirm the same size.
• Install the new filter in the same direction as the old one, matching the airflow arrow.
• Make sure it seats fully and isn’t folded or pinched.

Step 7: Reinstall the cover and glove box

• Reinstall the filter cover by hand until the tabs click into place.
• Lift the glove box back up and press the side walls inward again so the stops pass back into position.
• Reattach the damper arm to its pin by hand (use the flashlight if needed).

---

✅ After Repair

• Turn the ignition ON and run the blower fan at all speeds to confirm normal airflow and no rattles.
• Make sure the glove box opens/closes smoothly and “soft opens” (damper working).
• If you notice a musty smell, run A/C for a few minutes on fresh air (not recirculate).

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $45-$95 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
