🔧 Atlas - Cabin Air Filter Replacement

The cabin air filter cleans the air that comes through your A/C and heater vents. Replacing it helps reduce odors, improves airflow, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• 🛑 Turn ignition OFF and remove the key/fob from the vehicle.
• 🧤 Wear gloves and safety glasses; the old filter can be dusty/moldy.
• ⚠️ Don’t force plastic tabs—Atlas interior panels can crack if pried aggressively.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool
• Torx T20 driver
• Small flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the passenger front door for working room.
• Slide the passenger seat back to give your hands more space.
• Have a trash bag ready for dusty debris.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the cabin filter area

• Move to the passenger side and open the glove box.
• Use a small flashlight to look along the outer/right side of the glove box for a small damper arm (a little “shock” that slows the glove box).

Step 2: Lower the glove box

• Carefully unclip the glove box damper arm by hand. If needed, use a trim removal tool gently.
• Push the glove box sides inward with your hands to release the stops, then let the glove box swing down.
• Support it so it doesn’t drop hard.

Step 3: Remove the cabin filter cover

• Behind the glove box, locate the rectangular cabin filter cover.
• If your Atlas has screws, remove them with a Torx T20 driver. If it has clips, release them by hand (use the trim removal tool only if necessary).
• Pull the cover straight off and set it aside.

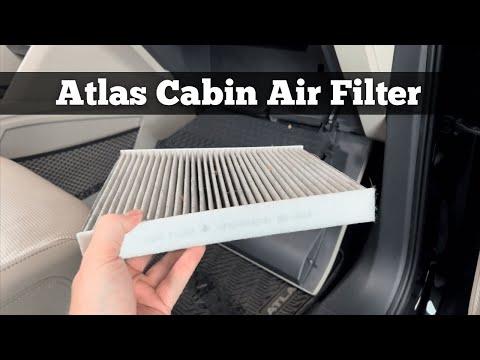

Step 4: Remove the old filter

• Slide the old filter straight out.
• Keep the filter level as you remove it to avoid dumping leaves/dust.

Step 5: Install the new filter

• Check the airflow arrow on the side of the new filter.
• Install it in the same direction the old one came out. (The arrow must match the airflow direction shown on the housing.)
• Slide it fully into the slot so it sits flat and doesn’t buckle.

Step 6: Reinstall the cover and glove box

• Reinstall the filter cover and press it into place.
• If screws were removed, reinstall them with the Torx T20 driver and tighten snug (do not over-tighten).
• Lift the glove box back up, push the sides inward to pass the stops, and reconnect the damper arm by hand.

---

✅ After Repair

• Start the Atlas and run the fan at different speeds to confirm strong airflow.
• Switch between fresh air and recirculation to confirm no new rattles.
• If there’s a musty smell, run A/C for a few minutes—some odor can be from the evaporator, not the filter.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $65-$115 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
