RAV4 - Cabin Air Filter Replacement 🌬️

This is a perfect first DIY job on your 2018 RAV4. No tools needed, and it’s all behind the glove box.

Safety & Prep ⚠️

• ✅ Park safely: Flat surface, engine off, parking brake on.
• ✅ Key off: Turn ignition off and remove the key (or switch off push-button).
• ✅ Protect your eyes: If you’re sensitive to dust, wear simple safety glasses and a mask.

Parts You Need 📦

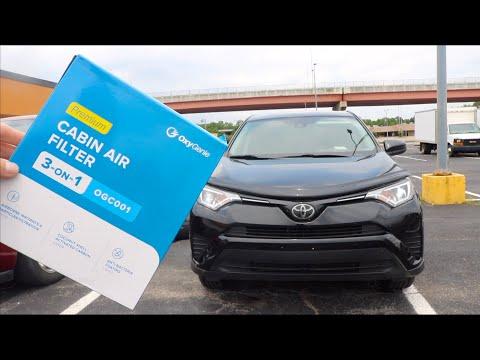

• 📌 Cabin air filter (for your 2018 RAV4 SE):
  • Type: Rectangular pleated filter
  • Location: Behind the glove box
  • You can choose: Standard paper or activated charcoal (better for odors).

Tools You Need 🧰

• 👐 No tools required – just your hands.

Step-by-Step: Accessing the Filter 🚪

• 🧾 Step 1 – Empty the glove box
  • Remove manuals, papers, and anything that can fall out.
• 📎 Step 2 – Release the glove box damper (side arm)
  • On the right side of the glove box, you’ll see a small plastic arm (this slows the glove box when it opens; it’s called a damper).
  • Gently push the arm inward toward the glove box and pull it off the pin on the dash side.
  • Tip: Support the glove box with your other hand so it doesn’t drop suddenly.
• ⬇️ Step 3 – Drop the glove box
  • On both sides of the glove box there are plastic stops that hit the dash frame.
  • Gently squeeze the sides of the glove box inward so those stops clear the dash opening.
  • Let the glove box swing down and hang; you’ll now see the black plastic HVAC housing behind it.

Step-by-Step: Removing the Old Filter 🧹

• 📦 Step 4 – Locate the cabin filter cover
  • Look for a rectangular plastic door in the center of the housing, about the width of a paperback book.
• 🔓 Step 5 – Remove the filter cover
  • There are small tabs on each side of the cover.
  • Press the tabs inward and pull the cover straight toward you.
  • Set the cover aside; you’ll reuse it.

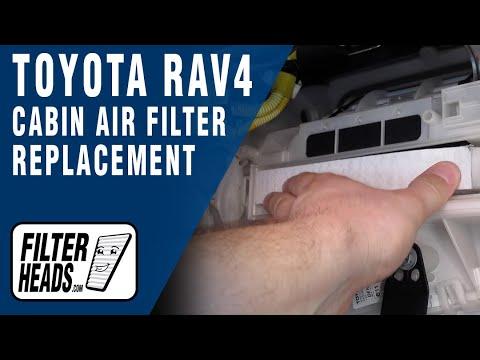

• 🪶 Step 6 – Slide out the old filter
  • Grab the filter by the edges and pull it straight out.
  • Note the airflow direction arrow printed on the side of the old filter (usually pointing down on Toyotas).
  • Tip: If leaves or dust fall, gently vacuum the area without poking deep inside.

Step-by-Step: Installing the New Filter ✅

• 🔍 Step 7 – Check airflow direction on the new filter
  • Find the “AIR FLOW” arrow on the new filter.
  • On your RAV4, the arrow should point down (toward the floor) when installed.
  • If the new filter only says “UP”, then the “UP” arrow should point upward.
• 📥 Step 8 – Insert the new filter
  • Slide the filter into the slot, keeping it square and flat.
  • Do not crush or bend the pleats; it should slide in smoothly.
• 🔁 Step 9 – Reinstall the filter cover
  • Align the cover with the opening and push it straight on until the side tabs click.

Step-by-Step: Reassembling the Glove Box 🧩

• 📂 Step 10 – Lift the glove box back up
  • Lift the glove box toward its normal closed position.
  • Squeeze the sides inward again so the stops go back inside the dash opening.
  • Release the sides so the stops rest behind the dash frame.
• 🔗 Step 11 – Reattach the damper arm
  • Find the small pin on the right side of the dash opening.
  • Snap the damper arm back onto the pin until it clicks in place.
• 📚 Step 12 – Reload the glove box
  • Put your items back in, but avoid overstuffing; it can stress the hinges and damper.

Check Your Work 🔄

• 🌡️ Turn the ignition on (engine can be off), set the fan to medium, and switch between fresh air and recirculate.
• 👃 Airflow should feel normal and smell cleaner; no rattles from the glove box.

Service Interval & Tips 📝

• 🕒 Replace the cabin filter about every 12 months or 15,000 km, or sooner in dusty areas (like much of Haryana).
• 🧺 If you often drive in dust or pollution, check it every 6 months.
