🔧 C-HR - Cabin Air Filter Replacement

Your C-HR’s cabin air filter cleans the air going through the heater and A/C vents. Replacing it helps reduce dust/pollen in the cabin and can improve weak airflow or bad odors.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key/fob from the vehicle.
• ⚠️ Don’t force the glove box—plastic tabs can crack if over-bent.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself room.
• Empty the glove box so nothing falls out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Open the glove box fully.
• Remove anything inside (manuals, papers, etc.).
• Use a flashlight so you can see the right-side damper.

Step 2: Disconnect the glove box damper

• On the right side of the glove box, find the small “damper” arm (a little plastic strut that slows the glove box). A damper is a small limiter that prevents the glove box from dropping fast.
• Use your hand (gloves help grip) to pop the damper arm off its pin or unhook it from the glove box.

Step 3: Drop the glove box down

• Gently push in on both sides of the glove box to clear the side stops.
• Let the glove box swing downward to expose the cabin filter housing behind it.
• Go slow—don’t bend the sides too far.

Step 4: Remove the cabin filter cover

• Locate the rectangular filter access door (usually near the center behind the glove box).
• Press the locking tabs and pull the cover straight off by hand.
• Use a flashlight to confirm the tab locations before pulling.

Step 5: Remove the old cabin air filter

• Slide the old filter straight out.
• Keep it level to avoid dumping leaves/debris into the blower housing.
• Check the filter for an airflow arrow printed on the side.

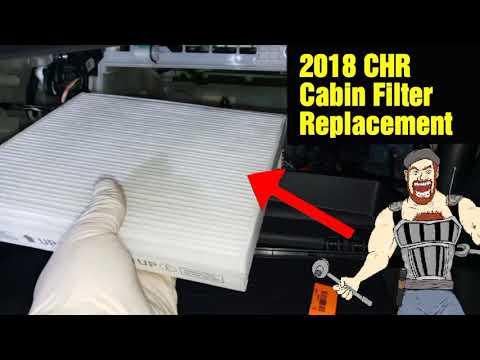

Step 6: Install the new cabin air filter

• Insert the new filter in the same orientation as the old one.
• Match the printed arrow on the filter to the housing marking:
  • If it says AIR FLOW, the arrow typically points down toward the floor in your C-HR.
  • If the housing has an UP marking, align the filter’s UP arrow accordingly.
• Make sure the filter seats fully and doesn’t buckle.

Step 7: Reinstall the cover and glove box

• Snap the filter cover back on until the tabs click.
• Lift the glove box back up and push in the sides to get past the stops again.
• Reattach the right-side damper arm to its pin/hook.
• Close the glove box and verify it opens/closes smoothly.

---

✅ After Repair

• Start the engine and run the blower on all speeds.
• Switch between fresh air and recirculation and confirm airflow is normal.
• If you hear a leaf-rattle, the filter may not be seated—recheck Step 6.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $12-$35 (parts only)

You Save: $48-$105 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
