🔧 4Runner - Cabin Air Filter Replacement

Your 4Runner’s cabin air filter cleans the air going through the A/C and heater vents. Replacing it helps airflow, reduces musty smells, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off before working around the passenger airbag area.
• ⚠️ Empty the glove box first so nothing falls out.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Small flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the passenger door for better access to the glove box.
• Remove items from the glove box.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Open the glove box fully.
• Put on nitrile gloves and safety glasses.
• Use a small flashlight so you can clearly see the sides and back of the glove box.

Step 2: Release the glove box stops

• With the glove box open, gently push in on the left and right sides of the glove box (near the top) to clear the “stops.”
• Keep pushing the sides inward while you let the glove box swing downward.
• Go slow—plastic tabs can snap.

Step 3: Unhook the glove box damper arm

• On the right side, you’ll see a small “damper” arm (a little shock/strap that slows the glove box). The damper is the piece that prevents the glove box from dropping fast.
• Use your fingers (and a small flashlight to see it) to gently pop the damper arm off its pin.

Step 4: Remove the cabin filter cover

• Behind the glove box opening, locate the rectangular cabin filter access door.
• Pinch the tabs on the cover and pull it straight off by hand.

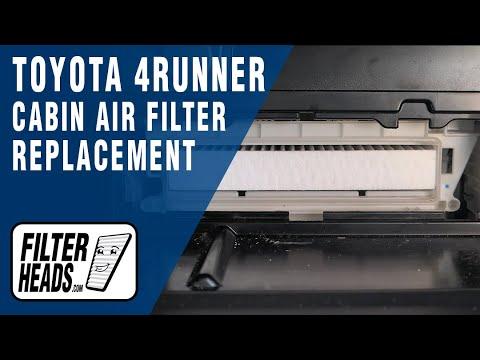

Step 5: Remove the old cabin air filter

• Slide the old filter straight out.
• Keep it level as you pull it out so leaves and dust don’t spill into the blower housing.

Step 6: Install the new cabin air filter

• Check the airflow direction marking on the filter (usually an arrow that says “AIR FLOW”).
• Install the filter in the same direction as the old one came out (airflow arrow typically points downward on your 4Runner).
• Make sure it slides in flat and fully seated (not folded or bowed).

Step 7: Reinstall the cover and glove box

• Reinstall the cabin filter cover by pushing it on until both tabs click.
• Reattach the glove box damper arm on the right side by pressing it back onto its pin.
• Lift the glove box back up and push the sides inward again so the stops go past the dash opening, then let it close normally.

---

✅ After Repair

• Start your 4Runner and run the fan on medium-high for 30 seconds.
• Switch between fresh air and recirculation and confirm airflow feels normal.
• If you hear a new ticking/rubbing noise, the filter may be mis-seated—recheck that it’s flat.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$150 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $40-$135 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
