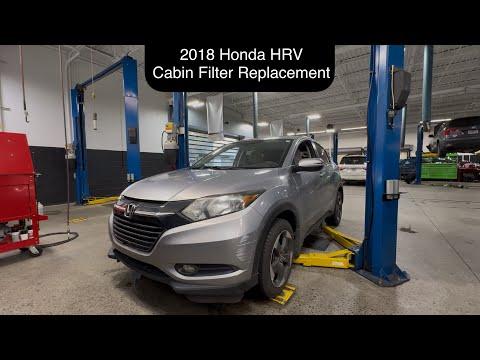

🔧 HR-V - Cabin Air Filter Replacement

Your HR-V’s cabin air filter cleans the air going through the HVAC system (heat/AC). Replacing it restores airflow, reduces odors, and helps keep dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and remove the key/fob from the vehicle.
• ⚠️ Work gently around the glove box damper and plastic tabs to avoid breaking them.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim removal tool (plastic)
• Phillips screwdriver #2

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself room.
• Empty the glove box so nothing falls out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and support the glove box

• Open the glove box fully and use a flashlight to look along the right side for the small “damper” arm (a little support arm that slows the glove box when it opens).

Step 2: Disconnect the glove box damper

• Use a trim removal tool (plastic) to gently pry the damper arm off its pin/clip on the glove box side.
• A trim removal tool is a plastic pry tool that helps prevent scratches and broken clips.

Step 3: Drop the glove box down

• On each side of the glove box, you’ll see a “stop” that keeps it from dropping.
• Use your hands to gently push the glove box sides inward (one side at a time) so the stops clear the dashboard opening.
• Lower the glove box down carefully.

Step 4: Remove the cabin filter cover

• Behind the glove box, find the rectangular cabin filter housing.
• Press the tabs on the filter cover and pull it straight off by hand.
• If a screw is present on your cover, remove it with a Phillips screwdriver #2.

Step 5: Remove the old filter

• Slide the old cabin filter straight out.
• Tip: Keep it level to avoid spilling debris.

Step 6: Install the new filter (correct direction)

• Check the arrows on the new filter frame.
• Install it so the AIR FLOW arrow points down (toward the floor), matching the airflow direction in the housing.
• Slide the filter fully into the slot without crushing the pleats.

Step 7: Reinstall the cover and glove box

• Reinstall the filter cover by hand until both tabs click into place.
• Lift the glove box back up and push the sides inward again so the stops pass into place.
• Reconnect the damper arm to its pin/clip (press it on by hand; use the trim removal tool (plastic) only if needed).

---

✅ After Repair

• Start the engine and run the fan at different speeds to confirm strong airflow and no rattles.
• If you hear a tapping noise, re-check that the filter cover is fully snapped in and the filter is seated flat.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $45-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
