🔧 Terrain - Cabin Air Filter Replacement

The cabin air filter cleans the air coming into your Terrain’s HVAC system (heat/AC). Replacing it helps airflow, reduces odors, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working around the passenger dash.
• ⚠️ Don’t force the glovebox; plastic tabs can snap in cold weather.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Plastic trim tool set
• 7mm socket
• 1/4" drive ratchet
• Small flashlight
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself room.
• Have the new filter unwrapped and ready.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and clear the glovebox

• Open the glovebox and remove any items inside so nothing falls out.
• Use a small flashlight to look along the right side of the glovebox for a small damper arm (a little shock/strap that slows the glovebox).

Step 2: Disconnect the glovebox damper arm

• Use a plastic trim tool set to gently pop the damper arm off its pin (or unclip it, depending on what you see).
• Go slow—this clip is easy to break.

Step 3: Drop the glovebox down

• Push inward on both sides of the glovebox to clear the side stops, then let the glovebox swing downward.
• If your Terrain has a lower hush panel or small retainer blocking access, remove it using a 7mm socket and 1/4" drive ratchet.

Step 4: Remove the cabin filter access door

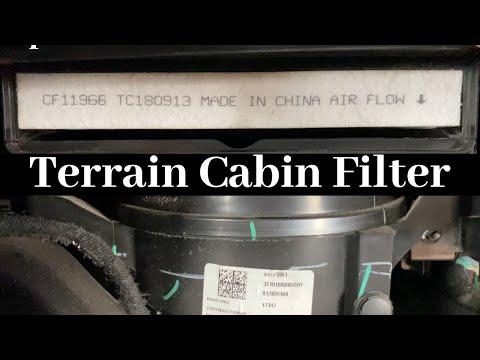

• Behind the glovebox, find the rectangular cabin filter cover.
• Press the locking tabs and pull the cover off by hand (use the plastic trim tool set only if needed).

Step 5: Remove the old filter

• Slide the old cabin filter straight out.
• Use the small flashlight to check for leaves/debris inside the housing and remove any loose debris by hand (wear nitrile gloves).

Step 6: Install the new filter (correct direction)

• Look for the airflow arrow on the new filter frame.
• Install it in the same direction as the old one came out (airflow arrow should match the housing direction).
• Slide the filter fully in so it sits flat and doesn’t fold.

Step 7: Reassemble the glovebox

• Reinstall the cabin filter cover by hand until both tabs click into place.
• Lift the glovebox back up and push the sides in to pass the stops again.
• Reconnect the damper arm by pressing it back onto its pin by hand (use the plastic trim tool set only if necessary).
• If you removed any panel screws, reinstall them using the 7mm socket and 1/4" drive ratchet.

---

✅ After Repair

• Start the engine and run the fan at medium speed to confirm strong airflow and no rattles.
• Switch between fresh air and recirculation and listen for any unusual fluttering (a sign the filter isn’t seated).
• If there’s a musty smell, run A/C for 5 minutes.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $65-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
