🔧 Q5 - Cabin Air Filter Replacement

The cabin air filter cleans the air going through your A/C and heater. Replacing it helps airflow, reduces musty smells, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove the key/fob from the vehicle.
• ⚠️ Use gentle pressure on interior panels to avoid breaking clips.
• ⚠️ Wear gloves and a dust mask if you’re sensitive to dust/pollen.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 screwdriver
• Plastic trim removal tool
• Flashlight
• Nitrile gloves
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back for more working space.
• Have a flashlight ready; the filter area is tucked up behind the glovebox.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Clear the glovebox area

• Remove any items from the glovebox so nothing falls out.
• Use a flashlight to locate the passenger-side lower dash panels and glovebox edges.

Step 2: Remove the glovebox side trim panel

• Open the passenger door.
• Use a plastic trim removal tool to gently pry off the small side trim panel at the right side of the dashboard (next to the glovebox).
• Tip: Pry from the rear edge first.

Step 3: Remove glovebox fasteners

• Use a Torx T20 screwdriver to remove the visible glovebox screws along the upper edge and/or side edge (where the trim panel was).
• Keep the screws together so they go back in the same spots.

Step 4: Lower the glovebox

• Support the glovebox with one hand while you remove the last screw using the Torx T20 screwdriver.
• Carefully lower the glovebox down to access the HVAC housing behind it.
• If a small damper arm (a little slow-down strap) is attached, gently unclip it by hand—don’t force it.

Step 5: Locate and open the cabin filter cover

• Use a flashlight to find the rectangular cabin filter access cover on the HVAC box behind/above the glovebox area.
• Release the cover tabs by hand. If it’s tight, use a plastic trim removal tool to help pop the tabs free.
• (The “HVAC box” is the plastic housing that routes air for A/C and heat.)

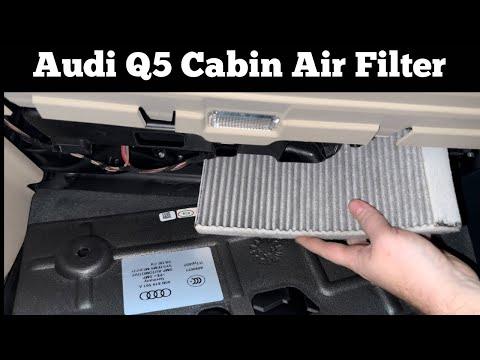

Step 6: Remove the old cabin air filter

• Put on nitrile gloves and a dust mask.
• Slide the filter straight out. You may need to flex it slightly to clear the opening—go slow so you don’t tear it and drop debris.
• Use a flashlight to look inside the housing for leaves or dust. If needed, carefully wipe the opening with a clean rag (by hand).

Step 7: Install the new cabin air filter

• Check the airflow arrow on the new filter frame (often marked “AIR FLOW”).
• Install the filter in the same direction the old one came out.
• Slide it fully into the housing so it seats flat and doesn’t buckle.
• Tip: A crooked filter can cause whistling noises.

Step 8: Reinstall the cover and glovebox

• Reinstall the filter cover and press until the tabs click in.
• Lift the glovebox back into position.
• Reinstall all screws using a Torx T20 screwdriver (snug only—do not over-tighten into plastic).
• Reinstall the side trim panel by aligning the clips and pressing it in by hand.

---

✅ After Repair

• Start the engine and turn the fan to medium, then high.
• Verify strong airflow from the vents and no rattles from the glovebox area.
• If you smell old dust for a minute, that’s normal as the system clears out.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$220 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $60-$195 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
