🔧 TITAN - Cabin Air Filter Replacement

Your TITAN’s cabin air filter cleans the air coming through the HVAC vents (A/C and heat). Replacing it helps airflow, reduces dust/pollen, and can cut down on musty odors.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before starting.
• ⚠️ Don’t force plastic tabs; they can snap in cold weather.
• ⚠️ No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim clip/panel removal tool
• Small flathead screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

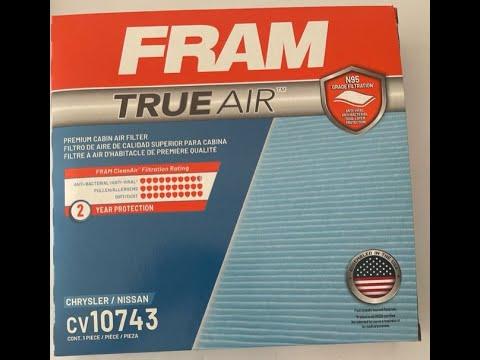

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to Park.
• Open the passenger door for more working room.
• Set the HVAC system to OFF (fan off) before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and clear the glove box

• Open the glove box and remove any items so nothing falls behind it.
• Use a flashlight to look along the right side of the glove box for the small “damper” arm (a little slow-down strap).

Step 2: Disconnect the glove box damper arm

• On the right side, gently unclip the damper arm from the glove box using a trim clip/panel removal tool.
• If it’s tight, carefully help it off with a small flathead screwdriver. Go slow to avoid breaking the clip.

Step 3: Let the glove box swing down

• Push the glove box sides inward (near the stops) with your hands so it can drop down farther.
• Lower it until you can see the cabin filter access door behind it.

Step 4: Remove the cabin filter access door

• Locate the rectangular filter cover and press the locking tab(s) to release it.
• If the tab is stubborn, use the small flathead screwdriver gently to press the tab while pulling the cover off by hand.

Step 5: Remove the old cabin air filter

• Pull the filter straight out by hand while wearing nitrile gloves.
• Note the airflow direction marking printed on the filter (usually an arrow). Use the flashlight to spot it if it’s dusty.

Step 6: Install the new cabin air filter

• Install the new filter in the same orientation as the old one, matching the airflow arrow direction.
• Slide it fully into the slot so it sits flat and doesn’t buckle.

Step 7: Reinstall the cover and glove box

• Reinstall the filter access door by hand until it clicks into place.
• Lift the glove box back up, push the sides inward again if needed, and let it re-seat on its stops.
• Reconnect the damper arm on the right side by pressing it back onto its peg until it snaps in.

---

✅ After Repair

• Start your TITAN and turn the fan to medium-high to confirm strong airflow and no rattles.
• Switch between fresh air and recirculation to make sure the door sounds normal.
• If you hear a ticking/rubbing noise, recheck that the filter is fully seated and not bent.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $65-$115 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
