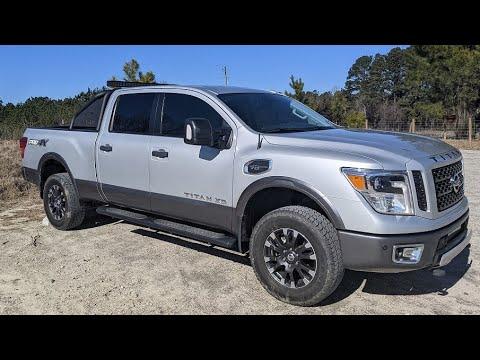

🔧 TITAN XD - Cabin Air Filter Replacement

Your TITAN XD’s cabin air filter cleans the air that comes through the HVAC vents (A/C and heat). Replacing it helps reduce dust, odors, and weak airflow, and it can prevent the blower motor from working harder than it should.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Park on level ground, shift to Park, and set the parking brake.
• ⚠️ Turn the ignition OFF and keep the key away from the truck while working near the passenger airbag area.
• ⚠️ Do not probe or unplug any yellow airbag connectors under the dash.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Plastic trim removal tool
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Open the passenger door and slide the passenger seat back for more room.
• Remove items from the glove box so nothing falls out during the job.
• Have a flashlight ready; it’s tucked up under the dash.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the glove box area

• Open the glove box fully.
• Use a flashlight to look behind/around the glove box for the cabin filter access panel.

Step 2: Lower/remove the glove box (if equipped with stops)

• On many TITAN XD setups, the glove box has side “stops” that keep it from dropping.
• Use your hands (or a plastic trim removal tool if tight) to gently push the glove box sides inward so the stops clear, then let the glove box swing downward.
• If there’s a small damper arm on the right side, use a small flat-blade screwdriver to gently release it. (A damper is a small arm that slows the glove box from dropping.)

Step 3: Remove the cabin filter cover

• Locate the rectangular cabin filter door behind the lowered glove box.
• Release the tabs by hand; if needed, gently help the tab with a small flat-blade screwdriver.
• If your truck uses screws on the cover, remove them with a Phillips #2 screwdriver.

Step 4: Remove the old cabin air filter

• Pull the filter straight out by hand.
• Keep it level as you remove it to avoid dumping leaves and dust into the housing.
• If it’s packed with debris, pull slowly.

Step 5: Install the new cabin air filter (correct direction)

• Check the airflow arrow printed on the filter frame.
• Install the filter in the same direction as the old one came out (airflow arrow must match the housing’s airflow direction).
• Slide it fully in until it seats evenly (no bending or buckling).

Step 6: Reinstall the cover and glove box

• Reinstall the cabin filter door until the tabs click in place.
• If screws were removed, reinstall them using a Phillips #2 screwdriver (snug only—do not overtighten).
• Reattach the glove box damper (if removed) using the small flat-blade screwdriver to guide it back into place.
• Lift the glove box back up and push the sides inward so the stops go back past the opening.

---

✅ After Repair

• Start the truck and run the blower on medium, then high, to confirm strong airflow.
• Switch between fresh air and recirculation and listen for any rattles (a rattling sound can mean the filter door isn’t fully latched).
• If you smell mustiness, run A/C for a few minutes.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$150 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $45-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
