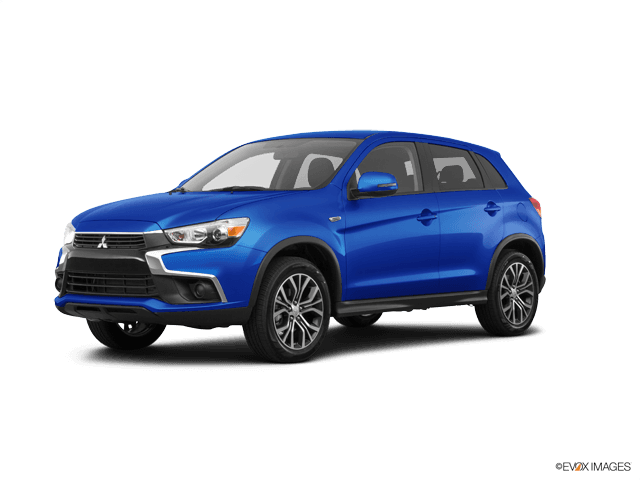

🔧 Outlander Sport - Cabin Air Filter Replacement

Your Outlander Sport’s cabin air filter cleans the air coming through the HVAC (heat/AC) system. Replacing it restores airflow, reduces musty smells, and helps keep dust and pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working near the glove box area.
• ⚠️ Don’t force plastic tabs; they can crack in cold weather.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim clip tool
• Phillips #2 screwdriver
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back for more working room.
• Have a trash bag ready for debris.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and open the glove box

• Open the glove box and remove anything inside.
• Use a flashlight to look along the right side of the glove box for a small “damper” arm (a little plastic arm that slows the glove box as it opens).

Step 2: Disconnect the glove box damper arm

• If equipped, gently pry the damper arm off its pin using a trim clip tool.
• Go slow—this clip is easy to snap.

Step 3: Drop the glove box down

• Push in on both sides of the glove box (near the upper corners) to clear the “stops,” then let the glove box swing downward.
• If your glove box has a retaining screw/strap, remove it using a Phillips #2 screwdriver.

Step 4: Remove the cabin filter door

• Behind the glove box, find the rectangular cabin filter cover.
• Press the locking tabs and pull the cover off by hand. Use nitrile gloves to keep dust off your hands.

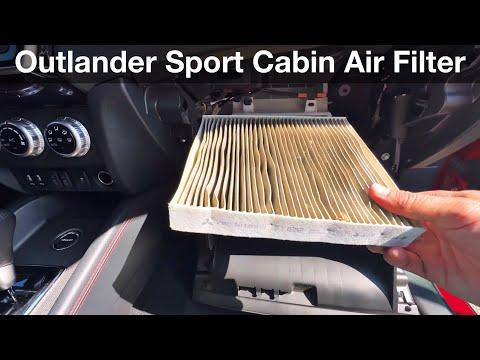

Step 5: Remove the old cabin air filter

• Slide the old filter straight out.
• Use the flashlight to check the filter slot for leaves and debris and remove anything loose by hand.

Step 6: Install the new cabin air filter

• Check the airflow arrow on the filter frame.
• Install it in the same direction as the original (airflow arrow should match the direction of airflow through the housing).
• If it buckles, pull out and re-seat it.

Step 7: Reinstall the filter door and glove box

• Reinstall the filter cover until both tabs click in.
• Swing the glove box back up and snap the side stops back into place.
• Reconnect the damper arm by hand; use a trim clip tool only if needed.
• If removed, reinstall any screw/strap using a Phillips #2 screwdriver.

---

✅ After Repair

• Start the engine and run the blower fan on medium, then high, to confirm strong airflow and no rattles.
• Switch between fresh air and recirculation to confirm the door area stays quiet.
• If you smell dust, run the fan 1-2 minutes.

---

💰 DIY vs Shop Cost

Shop Cost: ₹1,200-₹2,500 (parts + labor)

DIY Cost: ₹500-₹1,500 (parts only)

You Save: ₹700-₹1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
