🔧 QX50 - Cabin Air Filter Replacement

Your QX50’s cabin air filter cleans the air coming through the HVAC vents (A/C and heat). Replacing it helps reduce dust, odors, and weak airflow, and can prevent blower motor noise from a clogged filter.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove the key before working under the dash.
• ⚠️ Don’t force plastic panels; they crack easily in cold weather.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool (plastic)
• Phillips screwdriver #2
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the front passenger seat back to give yourself room.
• Assumption: filter access is behind the glove box.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and open the glove box

• Remove items from the glove box so nothing falls out.
• Open the glove box fully.
• Use a flashlight to look along the right side of the glove box area.

Step 2: Release the glove box damper strap

• On the right side, find the small damper strap (it’s a little arm that slows the glove box).
• Use a trim removal tool (plastic) to gently pop the strap off its pin.
• Tip: Pry close to the pin, not the strap.

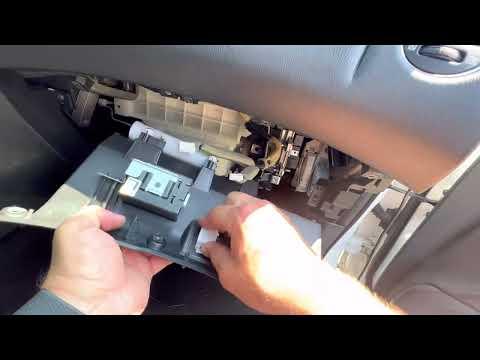

Step 3: Drop the glove box down

• Press in on both glove box side walls to clear the stops (the “stops” are plastic tabs that prevent it from dropping too far).
• Let the glove box swing downward carefully.
• If a small panel/cover is in the way near the filter area, remove it using a Phillips screwdriver #2.

Step 4: Remove the cabin filter access door

• Locate the rectangular cabin filter door behind the glove box area.
• Release the door tabs by hand, or gently with the trim removal tool (plastic), then pull the door off.

Step 5: Pull out the old cabin filter

• Wear nitrile gloves (old filters can be dusty).
• Slide the filter straight out. If it resists, wiggle it gently—don’t yank.
• Note the airflow arrow (or “UP” marking) on the old filter so the new one goes in the same direction.

Step 6: Install the new cabin filter

• Compare the new filter to the old one to confirm the same size.
• Install the new filter with the airflow arrow oriented the same way as the old filter.
• Push it fully in until it sits flat (no bending or bunching).

Step 7: Reinstall the access door and glove box

• Reinstall the cabin filter door by hand until the tabs click in.
• Lift the glove box back up and press the sides in to re-seat the stops.
• Reattach the damper strap to its pin by hand.
• If you removed any screws/panels, reinstall them using the Phillips screwdriver #2.

---

✅ After Repair

• Start the engine and run the blower on all speeds to confirm good airflow and no rattles.
• Switch between fresh-air and recirculate modes to confirm normal operation.
• If you notice a whistle noise, the filter may not be seated flat—recheck the access door and filter alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $65-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
