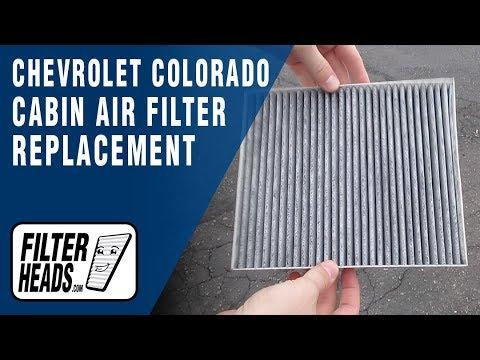

🔧 Colorado - Cabin Air Filter Replacement

Your cabin air filter cleans the air coming through the HVAC vents. Replacing it helps airflow, reduces musty smells, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

Assumption: your Colorado has the cabin filter access behind the glove box.

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and remove the key before working near the passenger airbag area.
• ⚠️ Don’t pry or drill near any yellow connectors/wiring (airbag circuits).
• No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Plastic trim tool set
• 7mm socket
• 1/4" drive ratchet

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself room.
• Have a small trash bag ready (old filters can be dusty).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and lower the glove box

• Open the glove box and remove anything inside.
• Look on the right side for the glove box “damper” arm (a small strap/arm that slows the door).
• Use a plastic trim tool set to gently pop the damper arm off its pin (don’t force it).
• Push in on both sides of the glove box (the flexible side walls) so the stops clear the dash opening, then let the glove box swing down.

Step 2: Remove the cabin filter access cover

• Behind the glove box, find the rectangular HVAC cover (this is the cabin filter door).
• Release the tabs by hand; if it’s tight, use a plastic trim tool set to help lift the tab.
• If your cover uses screws on your trim, remove them with a 7mm socket and 1/4" drive ratchet.

Step 3: Remove the old cabin air filter

• Slide the filter straight out.
• Use a flashlight to check the slot for leaves or debris.
• Tip: pull slowly to avoid dumping dust.

Step 4: Install the new cabin air filter

• Check the airflow arrow on the filter frame.
• Install it in the same direction as the old one (on most installs here, airflow is downward toward the blower/floor area).
• Slide it in evenly—don’t crush or fold it.

Step 5: Reinstall the cover and glove box

• Reinstall the filter cover until the tabs click in place.
• If removed, reinstall screws using a 7mm socket and 1/4" drive ratchet (snug only; no torque spec is typically listed for this cover).
• Lift the glove box back up and push the sides in again so the stops pass the dash opening.
• Reconnect the damper arm by pressing it back onto its pin (you should feel it seat).

---

✅ After Repair

• Start the engine and run the fan on medium to confirm strong airflow.
• Switch between fresh air and recirculation to verify normal operation.
• If you hear a fluttering noise, re-check that the filter is fully seated and not folded.

---

💰 DIY vs Shop Cost

Shop Cost: $70-$150 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $55-$105 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
