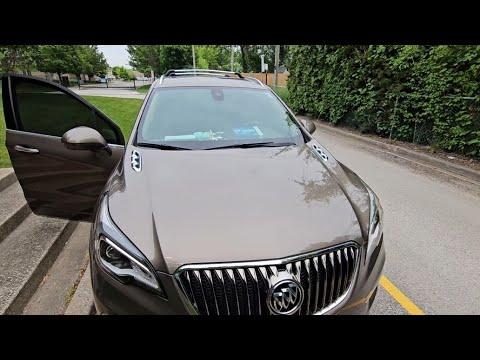

🔧 Envision - Cabin Air Filter Replacement

Replacing the cabin air filter keeps dust, pollen, and odors out of the air you breathe inside your Envision. A clogged filter can reduce A/C and heat airflow and make the blower motor work harder.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove the key fob from the vehicle.
• ⚠️ Work gently around the glove box area to avoid breaking plastic tabs.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool (plastic pry tool)
• Phillips #2 screwdriver
• Flashlight
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the front passenger seat back to give yourself room to work.
• Have a small trash bag ready for leaves and dust that may fall out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Open the glove box and remove any items so nothing falls out.
• Use a flashlight to look along the inside edges for any small stop tabs or a damper arm.

Step 2: Release the glove box so it can drop down

• On the right side, disconnect the glove box damper (a small arm that slows the glove box) if equipped.
• Use a trim removal tool (plastic pry tool) to gently pop the damper off its pin (do not yank).
• Push the glove box sides inward by hand to clear the stops, then let it swing downward.
• Tip: Press one side at a time.

Step 3: Remove the cabin filter access door

• Behind the dropped glove box, locate the rectangular cabin filter cover.
• If there are screws, remove them with a Phillips #2 screwdriver.
• If it uses clips, release them carefully using a trim removal tool (plastic pry tool).

Step 4: Remove the old cabin air filter

• Slide the old filter straight out.
• Keep it level to avoid dumping debris.
• Use a flashlight to check for leaves or dirt inside the housing, and wipe it out with a clean rag (use your work gloves).

Step 5: Install the new cabin air filter

• Check the airflow arrow on the new filter frame.
• Install it in the same direction as the old one came out (airflow should point toward the blower motor, into the HVAC box).
• Slide it in fully so it sits flat and doesn’t buckle.

Step 6: Reinstall the access door

• Reinstall the cabin filter cover and ensure all clips are fully seated.
• If screws were removed, reinstall them with a Phillips #2 screwdriver until snug (do not overtighten).

Step 7: Reinstall the glove box

• Lift the glove box back up into position.
• Push the sides inward again to pass the stop tabs back into place.
• Reconnect the damper arm if you removed it (press it back onto the pin by hand).

---

✅ After Repair

• Start the vehicle and run the fan at all speeds to confirm strong airflow and no rattles.
• Switch between fresh air and recirculation to make sure airflow sounds normal.
• If you notice a whistling noise, the filter may not be seated flat—recheck fitment.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $65-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
