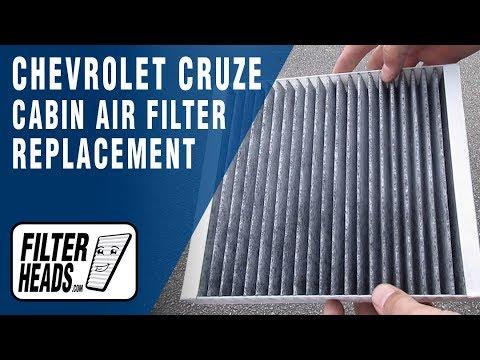

🔧 Cruze - Cabin Air Filter Replacement

Your Cruze’s cabin air filter cleans the air coming through the HVAC (heat/AC) system. Replacing it helps airflow, reduces odors, and can improve AC performance if the old filter is clogged.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working near the passenger footwell.
• ⚠️ Don’t force plastic trim—use gentle pressure to avoid breaking clips.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool (plastic)
• Phillips #2 screwdriver
• 7mm socket
• 1/4" ratchet
• Small flashlight
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself room.
• Have a trash bag ready—the old filter can drop dust and leaves.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the cabin filter area

• Go to the passenger side and look under/behind the glove box area.
• Use a small flashlight so you can clearly see the cover and fasteners.

Step 2: Remove the glove box (if equipped with the behind-glove-box style)

• Open the glove box and empty it.
• If there’s a small “damper” arm on the right side (a little linkage that slows the glove box), gently pop it off using a trim removal tool (plastic). Work slowly—clips can snap.
• Push in on both sides of the glove box to clear the stops, then lower it down.
• If your Cruze has screws along the glove box edge, remove them using a 7mm socket with a 1/4" ratchet (or a Phillips #2 screwdriver if it uses Phillips screws).
• Lift the glove box out if needed to fully expose the cabin filter cover.

Step 3: Remove the cabin air filter cover

• Locate the rectangular cabin filter access door/cover on the HVAC housing.
• Release the tabs by hand or gently with the trim removal tool (plastic).
• If the cover uses screws, remove them with a 7mm socket and 1/4" ratchet (or Phillips #2 screwdriver, depending on fastener type).

Step 4: Remove the old cabin air filter

• Pull the filter straight out.
• Wear nitrile gloves to keep dust off your hands.
• Note the airflow arrow on the filter frame before you remove it. The arrow shows which way air moves through it.

Step 5: Install the new cabin air filter

• Slide the new filter in the same direction as the old one.
• Match the airflow arrow to the direction you noted. If installed backwards, airflow can drop.
• Make sure the filter sits flat and doesn’t buckle or fold.

Step 6: Reinstall the cover and glove box

• Reinstall the access cover and snap the tabs back in place.
• If you removed screws, reinstall them using a 7mm socket and 1/4" ratchet (or Phillips #2 screwdriver) and snug them—don’t over-tighten plastic.
• Reinstall the glove box, raise it into place, and reattach the damper arm (if equipped).

---

✅ After Repair

• Start your Cruze and set the fan to medium-high to confirm strong airflow.
• Switch between fresh air and recirculation to confirm the air sounds smooth and not “whistling” (a sign the filter isn’t seated).
• If you notice a musty smell, run the fan with AC OFF for a few minutes to dry the HVAC box.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $65-$125 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
