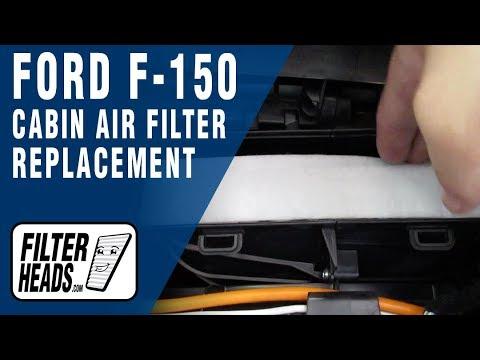

F-150 - Cabin Air Filter Replacement 🚚

Great choice—this is a quick, beginner-friendly job on your Lariat. Plan on 10–15 minutes.

What you’ll need 🧰

• 🛠️ Cabin air filter (Ford spec: HC3Z-19N619-A; common aftermarket: CF12150 or CUK12150 for carbon media)
• 🛠️ 7mm socket with ratchet (glove box screws)
• 🛠️ Trim tool (a plastic pry tool that pops clips without scratching)
• 🧼 Shop towel to catch dust/debris

Tip: Carbon filters reduce odors; standard paper flows a bit more air.

Safety first ⚠️

• 🧯 Park, set the parking brake, and turn ignition off.
• 🧤 Empty the glove box so nothing falls out.

Location 📍

The cabin filter is behind the glove box on your F-150 (2015–2020 body). No under-hood access needed.

Step-by-step ✅

• 📦 Open and lower the glove box
  • Open the glove box. On the right side, unclip the small damper cord (a string that slows the glove box drop) by sliding it off the pin.
  • Squeeze the sides of the glove box inward to clear the two side stops, and let the box swing down.
• 🔧 Remove the lower glove box divider panel
  • Look at the back panel you’ve exposed. Remove the two 7mm screws at the bottom edge.
  • Use a trim tool to gently pop the panel loose. Set it aside.
• 🗂️ Open the cabin filter door
  • You’ll see a narrow rectangular cover with side tabs. Press the left tab inward and swing the cover out. Some trucks have two squeeze tabs—press both.
• 🌬️ Remove the old filter
  • Pull the filter straight out. Note the airflow arrow printed on the filter (points down on your F-150).
  • Wipe out leaves/dust with a towel—don’t push debris into the blower.
• 🧩 Install the new filter
  • Slide the new filter in with the airflow arrow facing down. It’s a snug fit—keep it square as it goes in.
  • Reinstall the filter door until it clicks.
• 🪛 Reassemble the glove box
  • Reinstall the divider panel and the two 7mm screws (snug, hand-tight—no torque spec needed here).
  • Squeeze the glove box sides to seat the stops, then reattach the damper cord on the right pin.
• ✅ Final check
  • Start the truck. Run the blower through all speeds and modes. Listen for rubs—if you hear any, the filter may be mis-seated; reopen and reseat.

Maintenance notes 📝

• 🗓️ Replace every 15,000–20,000 miles, or 12 months in dusty/pollen-heavy areas.
• 🧠 If airflow is weak or you get a musty smell, replace sooner.
