🔧 Suburban - Cabin Air Filter Replacement

Your Suburban’s cabin air filter cleans the air going through the A/C and heater. Replacing it helps airflow, reduces odors, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working under the dash.
• ⚠️ Keep fingers clear of the glove box hinges and side stops when releasing it.
• ⚠️ No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 1/4" drive ratchet
• Plastic trim removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park your Suburban on level ground and set the parking brake.
• Turn HVAC OFF (fan off) so debris doesn’t blow around when the filter is removed.
• Move the passenger seat back for working space.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and open the glove box

• Remove items from the glove box so nothing falls out.
• Open the glove box fully.

Step 2: Release the glove box travel stop

• On the right side, unhook the small glove box damper arm (the little slow-down strap) using a plastic trim removal tool.
• Go slow—plastic tabs can snap.

Step 3: Drop the glove box down

• Push in on both sides of the glove box to clear the side stops (you’re flexing the glove box inward).
• Let the glove box rotate downward toward the floor.

Step 4: Remove the cabin filter access cover

• Behind the glove box, locate the rectangular cabin filter cover.
• If your cover uses screws, remove them with a 7mm socket and 1/4" drive ratchet.
• If your cover uses tabs, release the tabs by hand (use the plastic trim removal tool if needed).
• Pull the cover off and set it aside.

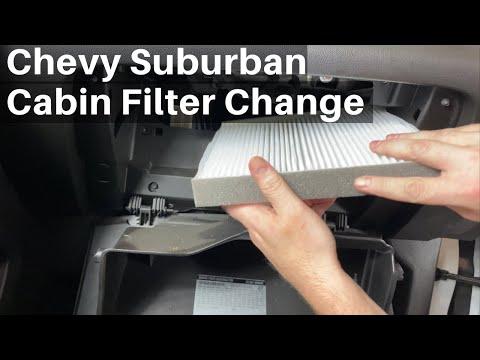

Step 5: Remove the old cabin air filter

• Slide the filter straight out of the housing.
• Use a flashlight to check for leaves/debris in the filter box and remove any loose debris by hand (with nitrile gloves).

Step 6: Install the new cabin air filter

• Match the airflow direction: look for an airflow arrow printed on the filter frame.
• Install it in the same direction the old one came out (typically airflow is toward the rear of the vehicle, into the blower).
• Slide the new filter in until fully seated—don’t force it.

Step 7: Reinstall the access cover and glove box

• Reinstall the filter cover.
• If equipped with screws, tighten them with a 7mm socket and 1/4" drive ratchet (snug only; no published torque is typically specified for this cover).
• Lift the glove box back up and push the sides inward to pass the stops back into place.
• Reconnect the damper arm on the right side using the plastic trim removal tool if needed.

---

✅ After Repair

• Start your Suburban and run the fan at medium-high for 30 seconds.
• Confirm airflow is strong and there are no rattles behind the glove box.
• If there’s a musty smell, run A/C for a few minutes to clear residual dust.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $65-$115 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
