🔧 CX-5 - Cabin Air Filter Replacement

Your CX-5’s cabin air filter cleans the air coming through the HVAC system (heat/AC). Replacing it helps airflow, reduces dust/pollen, and can prevent musty smells.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working under the dash.
• ⚠️ Don’t force plastic tabs—older trim can crack if twisted.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips #2 screwdriver
• Plastic trim removal tool (non-marring)
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back for more room.
• Empty the glove box so nothing falls out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and clear the glove box

• Open the glove box and remove all contents by hand.
• Use a flashlight to locate the small “damper” arm on the right side (the damper is a small rod that slows the glove box as it opens).

Step 2: Disconnect the glove box damper

• Gently pry the damper off its pin using a plastic trim removal tool (non-marring).
• Tip: Pry straight outward, not upward.

Step 3: Lower the glove box past the stops

• With the glove box open, press inward on both sides of the glove box using your hands to release the side “stops.”
• Let the glove box swing downward slowly.

Step 4: Remove the cabin filter access cover

• Behind the glove box, find the rectangular cabin filter cover.
• Release the cover tabs by hand; if needed, use the plastic trim removal tool (non-marring) gently to help the tabs unclip.

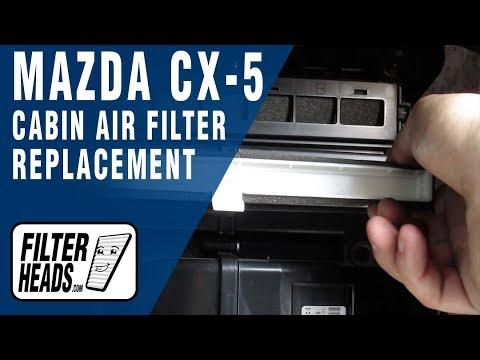

Step 5: Remove the old cabin air filter

• Pull the filter straight out by hand while wearing nitrile gloves.
• Use the flashlight to check for leaves/debris inside the filter housing and remove any loose debris by hand.

Step 6: Install the new cabin air filter

• Match the filter’s airflow direction arrow to the direction shown on the housing/cover (if present).
• Slide the new filter in evenly by hand—don’t bend or crush it.
• Tip: If it won’t slide in, it’s usually upside down.

Step 7: Reinstall the cover and glove box

• Reinstall the cabin filter cover by hand until the tabs click into place.
• Lift the glove box back up, then press the sides inward by hand to pass the stops back into position.
• Reconnect the damper arm by pressing it onto its pin by hand; use the plastic trim removal tool (non-marring) only if necessary to guide it.

---

✅ After Repair

• Start the engine and run the fan at medium speed.
• Cycle VENT > FLOOR > DEFROST to confirm airflow feels normal.
• If you hear a fluttering noise, recheck that the filter is fully seated and not folded.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $45-$95 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
