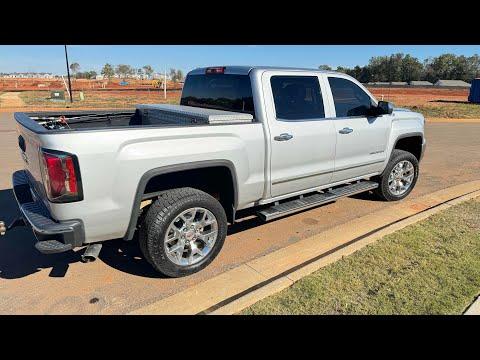

🔧 Sierra 1500 - Cabin Air Filter Replacement

On your Sierra 1500, the cabin air filter (if equipped) sits behind the glove box and cleans the air going through your A/C and heater. Some 2017 trucks were built without a factory filter door—even though the HVAC box is there—so you may need a small retrofit cover kit to add a filter.

Difficulty Level: Beginner | Estimated Time: 15-45 minutes

---

⚠️ Safety & Precautions

• ⚠️ Work with the truck parked on level ground and the ignition OFF.
• ⚠️ Don’t force the glove box—plastic tabs can crack in cold weather.
• ⚠️ Keep debris out of the blower opening; use a vacuum carefully.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim panel removal tool
• 7mm socket
• 1/4" drive ratchet
• Flashlight
• Shop vacuum with crevice tool
• Utility knife
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1
• Cabin air filter retrofit cover kit - Qty: 1

---

📋 Before You Begin

• Park, shift to Park, and turn the ignition OFF.
• Open the passenger door wide and clear out the glove box contents.
• If you have a floor mat, pull it back for more room to kneel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm whether your Sierra 1500 has a cabin filter door

• Use a flashlight to look under/behind the glove box area.
• You’re looking for a small rectangular access door on the HVAC box (usually with tabs/clips).
• If you see a door: follow Steps 2–6.
• If you do not see a door and see an outlined “cut here” rectangle: follow Steps 2–8 (retrofit path).

Step 2: Lower the glove box

• Open the glove box fully.
• On the right side, unhook the glove box damper (the small strap/arm) using a trim panel removal tool. Go slow—tabs break easily.
• Squeeze the glove box sides inward by hand so the stops clear, then let the glove box swing down.

Step 3: Remove the lower hush/insulator panel (if it blocks access)

• If you have a felt/insulator panel under the glove box, remove any screws using a 7mm socket and 1/4" drive ratchet.
• Pull the panel down using a trim panel removal tool.
• Torque: snug only (small screws; no published service torque for this panel).

Step 4: Open the cabin filter access (equipped path)

• Use the flashlight to locate the cabin filter cover.
• Release the tabs by hand or with a trim panel removal tool, then remove the cover.

Step 5: Remove the old filter

• Slide the old filter straight out by hand.
• Use a shop vacuum with crevice tool to remove leaves/dust from the slot. Don’t push debris deeper inside.

Step 6: Install the new filter and close it up (equipped path)

• Check the airflow arrow on the new filter and match it to the direction shown on the HVAC box/cover (or match how the old one came out).
• Slide the new filter in by hand until fully seated.
• Reinstall the cover by hand until the tabs click.

Step 7: Create the filter opening (retrofit path only)

• Locate the outlined rectangle on the HVAC box behind the glove box using the flashlight.
• Put on safety glasses and mechanic gloves.
• Carefully cut along the outline using a utility knife (light passes, don’t stab deep). Only cut the thin plastic door panel.
• Vacuum plastic shavings using the shop vacuum with crevice tool.

Step 8: Install the retrofit cover and new filter (retrofit path only)

• Slide the new cabin air filter into the opening by hand, matching the airflow arrow.
• Install the retrofit cover kit by hand until it snaps/locks into place.

Step 9: Reinstall glove box and panels

• Reinstall the hush/insulator panel (if removed) using a 7mm socket and 1/4" drive ratchet.
• Lift the glove box back up and squeeze the sides inward so the stops pass back into position.
• Reattach the glove box damper by hand (use the trim panel removal tool only if needed).

---

✅ After Repair

• Start the truck and run the blower on medium-high for 30 seconds.
• Confirm airflow is strong and there are no whistles/rattles behind the glove box.
• If airflow seems weak, recheck the filter orientation and that it’s fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$180 (parts + labor)

DIY Cost: $20-$60 (parts only, depends on whether you need the retrofit cover)

You Save: $70-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
