🔧 Fusion - Cabin Air Filter Replacement

Your cabin air filter cleans the air going through your A/C and heater. When it gets dirty, you may notice weak airflow, musty smells, or more dust inside the car.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition fully OFF before starting.
• ⚠️ Keep hands clear of the glove box hinge as it drops down.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip remover (non-marring) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park your Fusion on level ground and set the parking brake.
• Move the passenger seat back to give yourself room.
• Open the glove box and remove any items so nothing falls out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and “drop” the glove box

• Use your hands to open the glove box all the way.
• Gently push in on both sides of the glove box to clear the side stops, then let it swing downward.
• If a small damper strap is attached on the right side, use a trim clip remover (non-marring) (specialty) to carefully pop it off. Go slow to avoid breaking clips.

Step 2: Remove the cabin filter access door

• Look behind the glove box area for the rectangular cabin filter cover.
• Use your fingers (or a trim clip remover (non-marring) (specialty) if tight) to release the locking tabs and remove the cover.
• Use a flashlight so you can clearly see the tab locations.

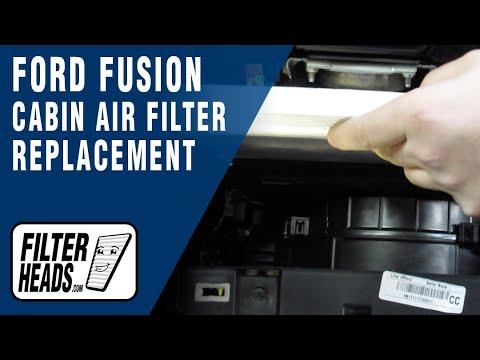

Step 3: Pull out the old cabin air filter

• Put on nitrile gloves and use safety glasses.
• Slide the old filter straight out. If it catches, wiggle it gently—don’t force it.
• Note the airflow direction arrow on the filter (it must match when installing the new one).

Step 4: Install the new cabin air filter

• Use your flashlight to find the airflow arrow marking on the HVAC housing or match the direction of the old filter.
• Slide the new filter in fully and evenly so it seats flat.
• If it buckles, pull it out and reinsert.

Step 5: Reinstall the cover and glove box

• Reinstall the access door by pushing it in until the tabs click into place.
• Reconnect the glove box damper strap (if equipped) using the trim clip remover (non-marring) (specialty) to guide it back on.
• Lift the glove box back up and push the sides in again to pass the side stops, then close it normally.

---

✅ After Repair

• Start the car and run the HVAC fan on medium, then high, to confirm good airflow.
• Switch between A/C and heat to ensure there are no new noises (a cover not fully clipped can rattle).
• If you still smell musty odor, run fresh air (not recirculation) for a few minutes.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $65-$115 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
