🔧 Explorer - Cabin Air Filter Replacement

Your Explorer’s cabin air filter cleans the air coming through the HVAC system (heat/AC). Replacing it helps reduce dust/pollen and can improve airflow if the old filter is clogged.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working under the dash.
• ⚠️ Use gentle pressure on trim panels to avoid cracking clips.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 1/4" drive ratchet
• Trim removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back to give yourself working room.
• Have a small trash bag ready.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the passenger-side lower dash area

• Open the passenger door and use a flashlight to look under/around the glove box.
• If a lower trim panel is in the way, remove any retaining screws using a 7mm socket and 1/4" drive ratchet.
• Use a trim removal tool (a plastic pry tool used to pop clips without scratching) to gently release clips and pull the panel down/out.

Step 2: Drop the glove box (if needed)

• Open the glove box.
• On the right side, disconnect the glove box damper arm if equipped (it’s the small slow-down arm). Use a trim removal tool to gently pop it off the peg.
• Squeeze the glove box sides inward by hand to clear the stops, then let the glove box swing downward.

Step 3: Remove the cabin filter cover

• Behind the glove box area, locate the rectangular cabin filter access door/cover on the HVAC case.
• Release the cover tabs by hand (or gently with the trim removal tool if tight) and remove the cover.

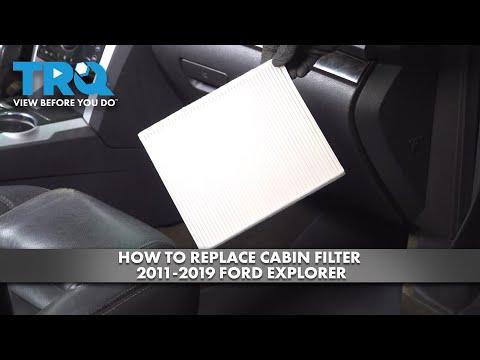

Step 4: Remove the old cabin air filter

• Slide the filter straight out.
• Keep it level as you pull it to avoid dumping leaves/dust.
• Note the airflow arrow before removal.

Step 5: Install the new cabin air filter

• Compare the new filter to the old one to confirm the same size.
• Install the new filter in the same direction as the old one, following the airflow arrow (typically points toward the rear of the vehicle, into the HVAC box).
• Make sure the filter seats fully and isn’t folded or pinched.

Step 6: Reinstall the cover and reassemble

• Reinstall the cabin filter cover by pressing it in until the tabs click.
• Lift the glove box back up and re-engage the side stops (squeeze sides inward again if needed).
• Reconnect the damper arm if you removed it.
• Reinstall any lower trim panel and tighten screws using a 7mm socket and 1/4" drive ratchet.

---

✅ After Repair

• Start your Explorer and run the fan on medium-high for 30 seconds.
• Check that airflow sounds normal (no fluttering/whistling).
• Confirm the glove box opens/closes smoothly and the damper works normally.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $40-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
