🔧 Corolla - Cabin Air Filter Replacement

Replacing the cabin air filter keeps dust, pollen, and odors out of the air coming through your A/C and heater. On your Corolla, the filter sits behind the glove box and is a quick DIY service item.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working under the dash.
• ⚠️ Don’t force the glove box—plastic tabs can snap if over-bent.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Plastic trim tool set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition OFF.
• Clear out the glove box so nothing falls out when it drops down.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the glove box area

• Put on nitrile gloves and safety glasses.
• Use a flashlight to look behind/around the glove box so you can see the filter cover clearly.

Step 2: Release the glove box damper arm

• Open the glove box.
• On the right side, find the small “damper” arm (it slows the glove box). It’s a small plastic link.
• Use a plastic trim tool set to gently pry the damper arm off its peg (or pull it off by hand if it releases easily).

Step 3: Drop the glove box down

• With the glove box open, press inward on both sides of the glove box to clear the side “stops.”
• Once both sides clear, let the glove box swing downward slowly.

Step 4: Remove the cabin filter housing cover

• Behind the glove box opening, locate the cabin filter access door/cover (a rectangular plastic cover).
• Use a plastic trim tool set (or your fingers) to press the locking tabs and pull the cover straight off.

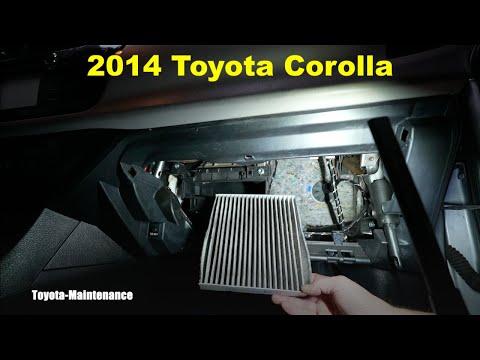

Step 5: Remove the old cabin air filter

• Slide the filter straight out of the slot.
• Keep the filter level as you pull it out to reduce debris falling into the blower area.

Step 6: Install the new cabin air filter

• Check the airflow marking on the filter (usually an arrow with “AIR FLOW”).
• Install the filter in the same direction as the old one (match the arrow direction). Wrong direction can reduce airflow.
• Slide it in until fully seated—do not bend or crush it.

Step 7: Reinstall the cover and glove box

• Reinstall the filter access cover by pushing it in until the tabs click.
• Lift the glove box back up and press the sides inward again so the stops pass back into place.
• Reconnect the damper arm on the right side (push it back onto the peg until it snaps on).

---

✅ After Repair

• Start the car and run the fan on medium, then high, to confirm good airflow and no rattles.
• Switch between fresh air and recirculation to ensure normal operation.
• If you hear a ticking sound, recheck that the filter cover is fully latched.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $12-$35 (parts only)

You Save: $45-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.5 hours.

---
