🔧 Tacoma - Cabin Air Filter Replacement

Your Tacoma’s cabin air filter cleans the air going through the heater/AC. Replacing it helps airflow, reduces dust/pollen, and can prevent musty odors.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and remove the key before working under the dash.
• ⚠️ Don’t force plastic tabs—older glove box parts can crack.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Flashlight
• Nitrile gloves
• Trim removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1
• Cabin air filter retrofit kit - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the passenger seat back for working room.
• Open the glove box and remove anything inside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Use your nitrile gloves and remove all items from the glove box so nothing falls into the dash.
• Use a flashlight to look along the right side of the glove box for a small “damper” arm (a little strap that slows the glove box).

Step 2: Disconnect the glove box damper (if equipped)

• Use the trim removal tool to gently pop the damper arm off its small peg on the glove box side. Gentle pressure beats prying hard.

Step 3: Drop the glove box down

• Use your hands (and a trim removal tool if needed) to press the glove box sides inward so the “stops” clear the dash opening.
• Let the glove box swing downward toward the floor so you can access the HVAC housing behind it.

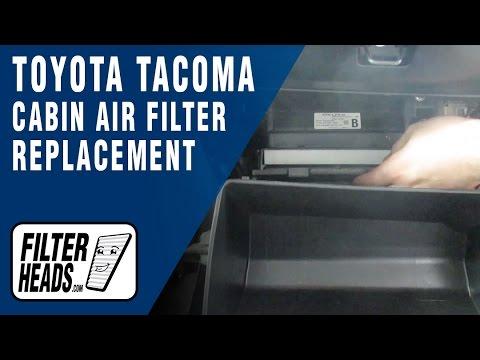

Step 4: Locate the cabin filter access cover

• Use the flashlight to find a rectangular cover directly behind where the glove box was (it usually has small squeeze tabs).

Step 5: Remove the filter cover

• Use your nitrile gloves and squeeze the tabs on the cover, then pull the cover straight off.
• If the tabs are stubborn, use the trim removal tool to help gently—don’t snap them.

Step 6: Remove the old cabin air filter (if present)

• Use your nitrile gloves to slide the filter straight out.
• Use the flashlight and note the direction of the airflow arrow on the filter frame (you’ll match this on the new one).

Step 7: Install the new cabin air filter

• Use your nitrile gloves to slide the new filter in the same way the old one came out.
• Make sure the filter’s airflow arrow matches the housing direction. Wrong direction can reduce airflow.

Step 8: If there is NO filter slot (some base setups)

• Use the flashlight to confirm: you may see a blank panel or no usable filter track behind the cover area.
• In that case, use the parts from a cabin air filter retrofit kit (housing/door pieces) per the kit instructions, then install the cabin air filter.

Step 9: Reinstall the cover and glove box

• Use your nitrile gloves to reinstall the filter cover until it clicks.
• Lift the glove box back up, press the sides inward, and let the stops snap back into place.
• Reconnect the damper arm using the trim removal tool to guide it onto the peg if needed.

---

✅ After Repair

• Start the engine and run the fan at all speeds to confirm strong airflow and no rattles.
• Switch between fresh air and recirculation to confirm the door movement sounds normal.
• If you smell dust briefly, that can be normal as remaining debris clears out.

---

💰 DIY vs Shop Cost

Shop Cost: $70-$140 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $55-$105 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
