🔧 Highlander - Cabin Air Filter Replacement

Replacing the cabin air filter on your Highlander is a simple beginner-friendly job. The filter sits behind the glove box and cleans dust, pollen, and debris from the air entering the cabin vents.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off before working around the glove box.
• ⚠️ Do not force the glove box downward; the plastic stops can crack if bent too far.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Highlander on level ground.
• 🅿️ Shift to Park and set the parking brake.
• 🧤 Put on nitrile gloves and safety glasses.
• 📦 Empty the glove box so nothing falls out when it swings down.
• 💡 A cabin air filter is the small rectangular filter that cleans air for the heater and A/C system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and Empty the Glove Box

• Use your hands to open the glove box fully.
• Remove all items from inside the glove box.
• Use a flashlight to look along the right side of the glove box.
• Keep screws and papers away.

Step 2: Release the Glove Box Damper

• Use your hands to find the small damper arm on the right side of the glove box.
• The damper is a small plastic arm that slows the glove box as it opens.
• Gently slide or pop the damper arm off the glove box pin by hand.
• Do not pull hard; it only needs light pressure.

Step 3: Lower the Glove Box

• Use both hands to press inward on the left and right sides of the glove box.
• This lets the glove box stops clear the dashboard opening.
• Slowly lower the glove box down until you can see the cabin filter cover behind it.
• Press both sides evenly.

Step 4: Remove the Cabin Filter Cover

• Use your fingers to squeeze the tabs on the cabin filter cover.
• Pull the cover straight off and set it aside.
• Use a flashlight to check the direction arrow on the old filter before removing it.

Step 5: Remove the Old Cabin Air Filter

• Use your fingers to slide the old cabin air filter straight out.
• Hold it level so leaves and dust do not spill into the blower housing.
• The blower housing is the plastic box that holds the fan for your heater and A/C.
• Dispose of the old filter.

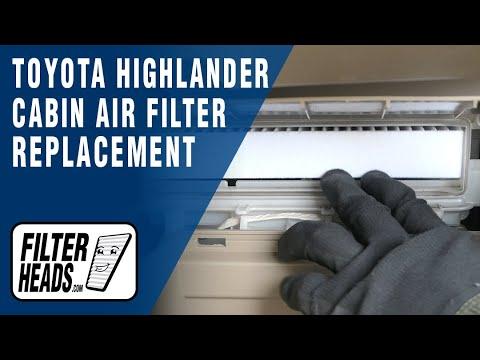

Step 6: Install the New Cabin Air Filter

• Use your hands to slide the new cabin air filter into the slot.
• Match the airflow arrow direction to the marking on the filter housing or the old filter orientation.
• On most Toyota cabin filters, the airflow arrow points downward when installed.
• Make sure the filter sits flat and does not fold at the edges.
• Do not crush the filter pleats.

Step 7: Reinstall the Filter Cover

• Use your hands to align the cabin filter cover with the opening.
• Push the cover into place until the tabs click securely.
• Gently tug the cover by hand to confirm it is locked in.

Step 8: Reinstall the Glove Box

• Use both hands to raise the glove box back toward its normal position.
• Press the sides inward slightly so the glove box stops move back past the dashboard opening.
• Reconnect the glove box damper arm by pushing it back onto its pin by hand.
• Open and close the glove box once to confirm smooth movement.

---

✅ After Repair

• ✅ Start your Highlander and turn the blower fan on low, medium, and high.
• ✅ Check that air comes from the vents normally.
• ✅ Listen for unusual rattling, which could mean the filter cover is not fully clipped in.
• ✅ If airflow is weak, recheck that the filter is seated flat and facing the correct direction.
• ✅ Replace the cabin air filter about every 12 months or 12,000-15,000 miles, sooner in dusty areas.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
