🔧 F-350 Super Duty - Cabin Air Filter Replacement

On your F-350 Super Duty, many trucks did not come from the factory with a cabin air filter. This job starts by checking behind the glove box for a filter access door; if a filter (or retrofit door) is installed, replacement is quick.

Assumption: Your truck may or may not have the optional/retrofit cabin filter door installed; steps below cover both outcomes.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• 🛑 Park on level ground, shift to Park, and set the parking brake.
• 🧤 Wear gloves—plastic edges behind the glove box can be sharp.
• 🔌 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim removal tool (plastic) (specialty)
• 7mm socket
• 1/4" drive ratchet
• Small flat-blade screwdriver
• Flashlight
• Shop vacuum with crevice tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1
• Cabin air filter retrofit kit - Qty: 1

---

📋 Before You Begin

• Open the passenger door and move the floor mat out of the way for more room.
• Empty the glove box so nothing falls out when you lower it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

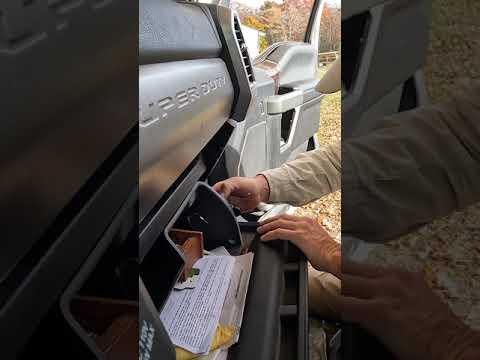

Step 1: Lower the glove box

• Open the glove box fully.
• Use your hands to gently push the glove box sides inward to release the side stops, then let the glove box swing downward.
• If your glove box has a small damper strap on the right side, use a small flat-blade screwdriver to gently pop it free. Go slow—plastic tabs break easily.

Step 2: Check for a cabin filter access door

• Use a flashlight to look behind where the glove box sits.
• Look for a rectangular HVAC access cover/door (usually a snap-on or screw-on cover).
• If you see no cover and just a solid HVAC case: your truck likely doesn’t have a factory cabin filter. Skip to Step 6 (retrofit option).

Step 3: Remove the cabin filter door (if equipped)

• If it uses clips, use a trim removal tool (plastic) (specialty) or your fingers to release the tabs and pull the cover off.
• If it uses screws, remove them with a 7mm socket and 1/4" drive ratchet, then pull the cover off.

Step 4: Remove the old cabin air filter

• Slide the filter straight out by hand.
• Keep it level as you pull it out so leaves and dust don’t spill.
• Use a shop vacuum with crevice tool to gently clean out any debris you can reach in the filter slot.

Step 5: Install the new cabin air filter

• Check the airflow arrow on the filter frame (it may say Air Flow).
• Install the filter in the same direction as the arrow indicates.
• Slide it in until it seats fully—do not force it.
• Reinstall the access door by hand, then tighten any screws with a 7mm socket and 1/4" drive ratchet snug (do not overtighten).

Step 6: If there’s no cabin filter slot (retrofit path)

• Install a cabin air filter retrofit kit designed for your F-350. These kits typically include a cut line/template and an access door.
• Use the kit’s included instructions exactly—this involves opening an access area in the HVAC case and snapping/screwing in a door.
• If you’re not comfortable cutting plastic near the HVAC case, this is the one part that may be better to have a shop do.

Step 7: Reassemble the glove box

• Reattach the damper strap (if equipped) by hand (use a small flat-blade screwdriver only if needed).
• Lift the glove box back up and push the sides inward again to re-seat the side stops.
• Close the glove box and confirm it opens/closes normally.

---

✅ After Repair

• Turn the key on and run the blower on medium for 30 seconds.
• Verify airflow is normal and you don’t hear ticking (a leaf stuck in the fan can tick).
• If you notice a musty smell, run fresh air (not recirc) for a few minutes.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $20-$60 (parts only)

You Save: $60-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.8 hours.

---
