🔧 Camry - Cabin Air Filter Replacement

Your cabin air filter cleans the air that comes through the HVAC (heat/AC) vents. Replacing it helps reduce dust, odors, and can improve airflow—especially if your fan feels weak or smells musty.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key/fob from the car.
• ⚠️ Don’t force plastic tabs; they can crack if bent too far.
• ⚠️ Keep fingers clear of the glove box hinges when lowering it.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Plastic trim removal tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the HVAC fan OFF so loose dust doesn’t blow around.
• Tip: Take a photo before removing anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and open the glove box

• Open the glove box and remove anything inside so nothing falls out.
• Use a flashlight to look along the right side of the glove box for a small “damper” arm (a little strut that slows the glove box). A damper is a small support that controls how fast something moves.

Step 2: Disconnect the glove box damper

• Use a plastic trim removal tool to gently pry the damper arm off its pin (it usually pops off with light pressure).
• Let the damper hang свободly (don’t yank it).

Step 3: Release the glove box stops and lower the glove box

• With the glove box open, push in on the glove box side walls (left and right) with your hands to clear the “stops” so the glove box can swing down further.
• Lower the glove box downward to expose the cabin filter access area behind it.
• Tip: Push one side in at a time if tight.

Step 4: Remove the cabin filter cover

• Locate the rectangular cabin filter housing cover behind the glove box.
• Use your fingers or a plastic trim removal tool to press the side tabs and pull the cover straight off.

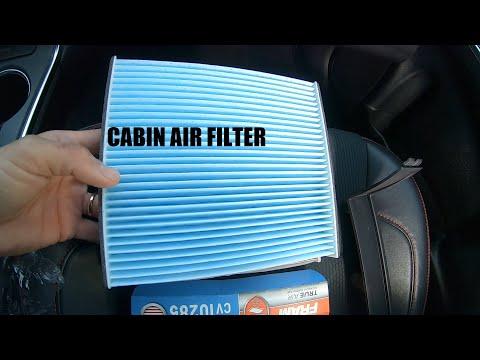

Step 5: Remove the old cabin air filter

• Slide the old filter straight out.
• Use a flashlight to check for leaves/debris in the housing. Pull debris out by hand with nitrile gloves.
• Note the airflow direction marking (often an arrow) on the old filter so the new one goes in the same way.

Step 6: Install the new cabin air filter

• Insert the new filter into the slot, keeping the airflow arrow pointing the correct direction (match the arrow on the housing/old filter).
• Make sure it slides in evenly and isn’t bent or folded.

Step 7: Reinstall the cover and glove box

• Reinstall the cabin filter cover until the tabs click into place.
• Lift the glove box back up and push the sides in again to get the stops past the opening, then let it settle into normal position.
• Reconnect the damper arm to its pin (press it on by hand until it snaps in).

---

✅ After Repair

• Start the car and run the fan at different speeds to confirm normal airflow and no rattles.
• Switch between fresh air and recirculate to ensure the glove box area stays quiet (no tapping from the damper).
• Tip: Replace yearly or every 12k-15k miles.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$40 (parts only)

You Save: $65-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.5 hours.

---
